Locking Electrical Plug Connections

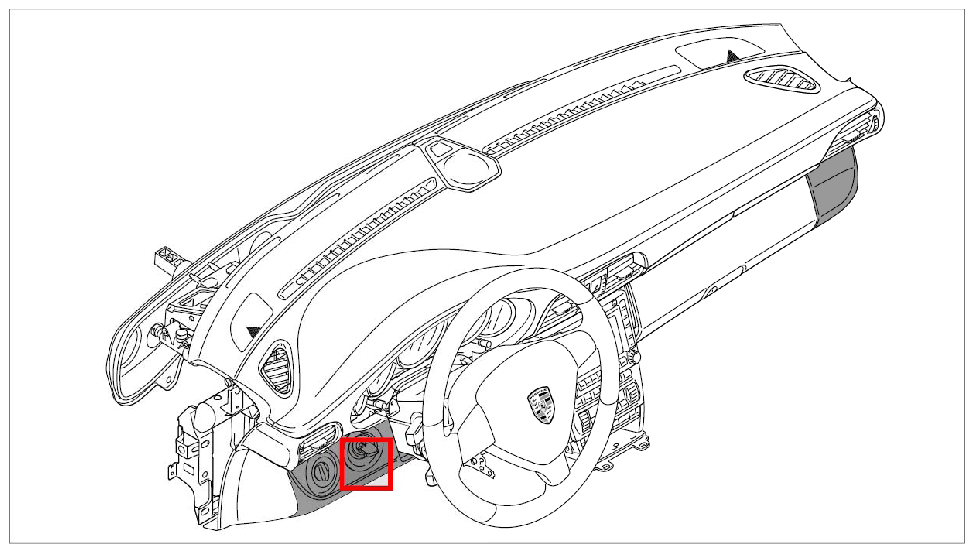

Fig 1: Overview Of Cover Under Instrument Panel
G09829107Courtesy of PORSCHE CARS NORTH AMERICA, INC.

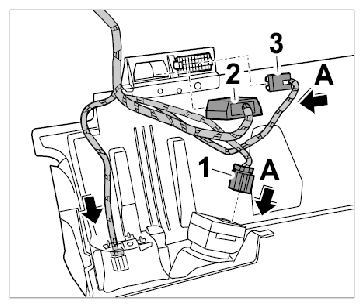

  1. Push on plug connections -1, 2, 3- -arrows A-  , until the locking tabs engage audibly.
    Fig 2: Pushing On Electrical Plug Connections
    G09829108Courtesy of PORSCHE CARS NORTH AMERICA, INC.
