Installing Trim Under Dashboard On The Driver's Side

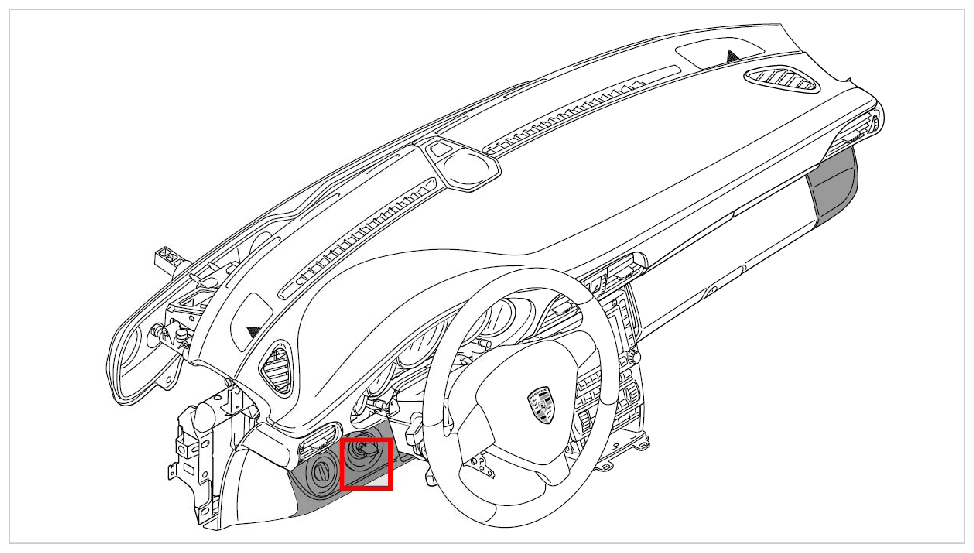

Fig 1: Overview Of Cover Under Instrument Panel

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Insert cover under the instrument panel -2-  on the guides.

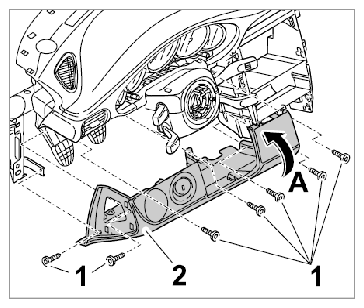

   Fig 2: Installing Lining

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Swivel cover under the instrument panel -2-  upwards -arrow A-  .
3. Screw in -1-  fastening screws. Tightening torque → : 1.5 ft. lb.
