Removing The Device Carrier

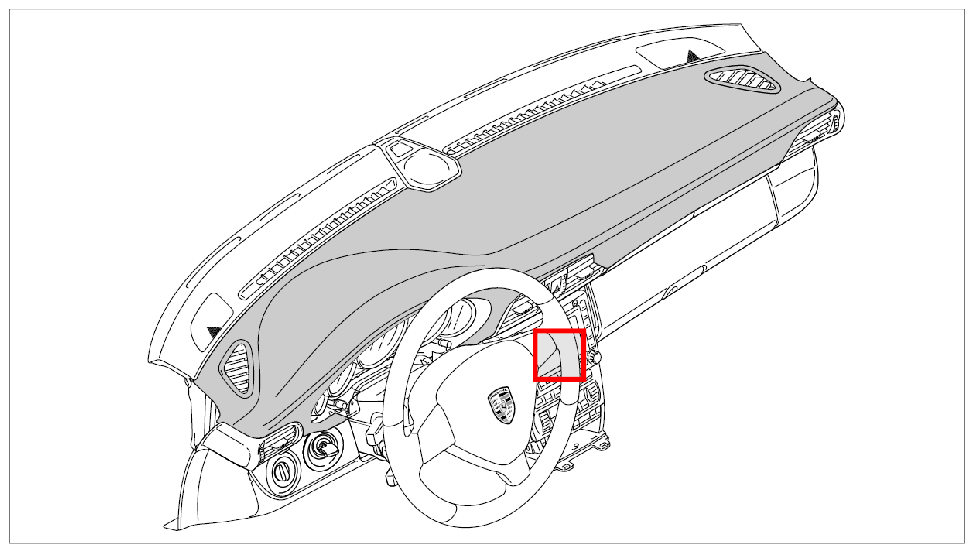

Fig 1: Overview Of Instrument Panel

G09829085

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Undo fastening screws -1- .

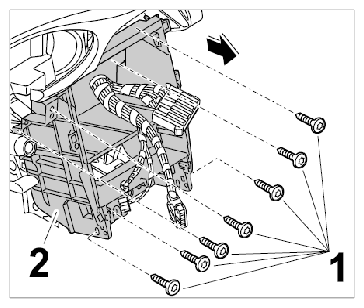

Fig 2: Removing Carrier Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information
- Unclip electrical lead in vehicles with a telephone handset.
Pull device carrier -2- backwards.
