Installing The Device Carrier

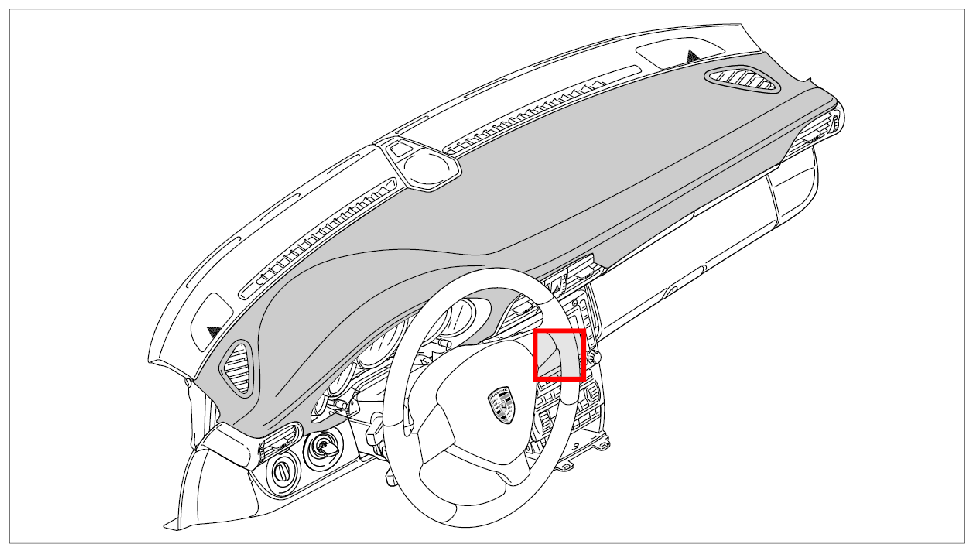

Fig 1: Overview Of Instrument Panel
G09829101Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Position device carrier -2-  and screw down using the fastening screws -1-  . Tightening torque → Final tightening: 3 Nm (ft. lb.) (2)

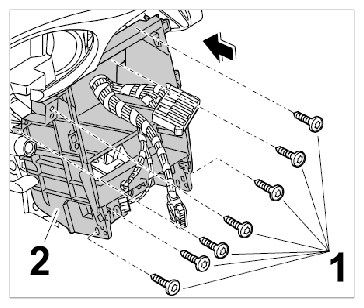

    Fig 2: Installing Carrier Screw
    G09829102Courtesy of PORSCHE CARS NORTH AMERICA, INC.
