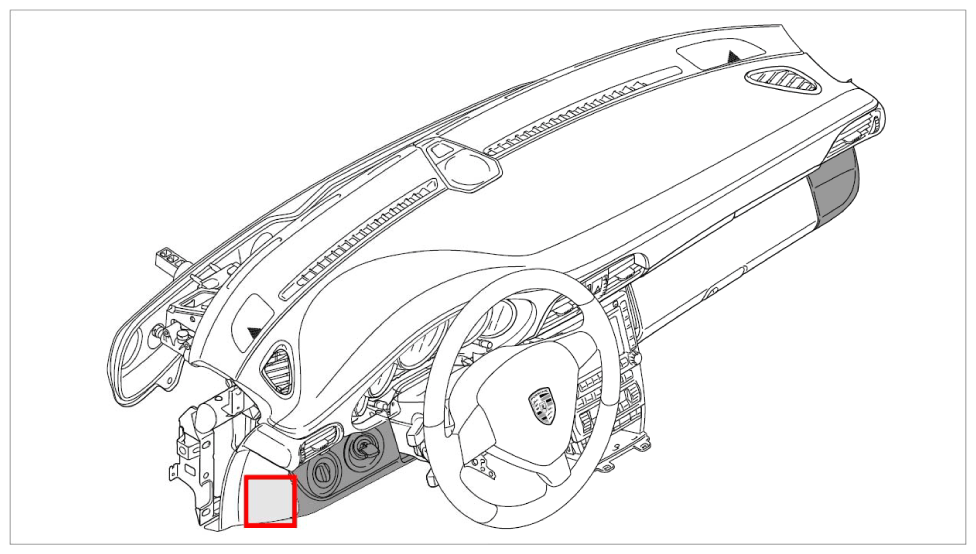

Removing Instrument Panel Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

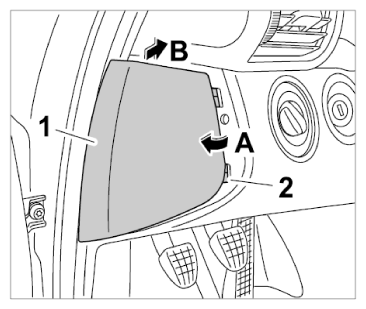

- Unclip cover -1-
using a plastic wedge on the retaining clips -2-
and swivel it outwards -arrow A-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Remove the cover -1-
to the rear -arrow B-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Unclip cover -1-
using a plastic wedge on the retaining clips -2-
and swivel it outwards -arrow A-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Remove the cover -1-
to the rear -arrow B-
.
