Removing Front Luggage Compartment Trim Panel (Luggage Compartment Pan)

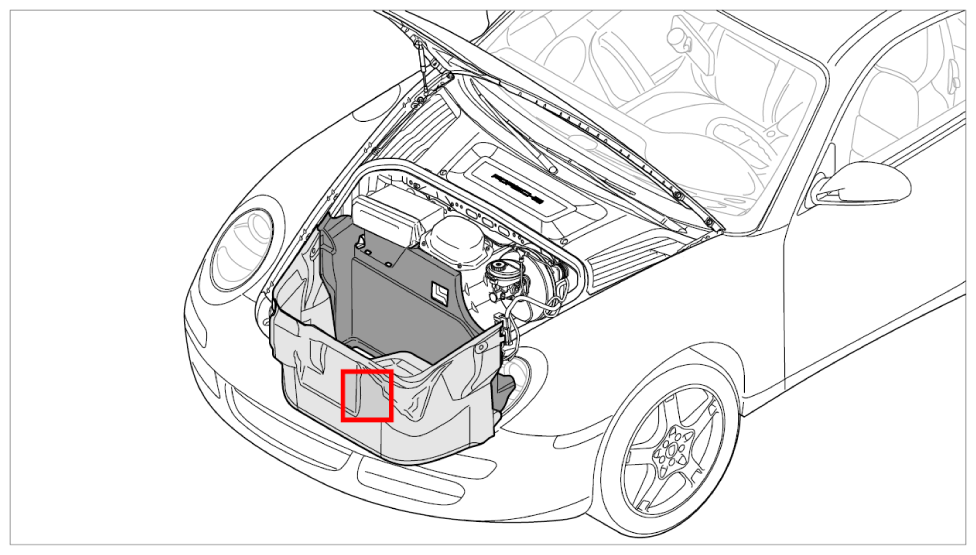

Fig 1: Identifying Front Luggage Compartment Trim Panel Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

• Only for USA/Canada vehicles.

1. Remove front emergency release. → WM 556219 REMOVING AND INSTALLING FRONT EMERGENCY RELEASE (ALL MODELS) - section on "Removing"
2. Remove CD changer. → WM 916019 REMOVING AND INSTALLING CD CHANGER (911 CARR. COUPE, 911 CARR. S COUPE, 911 CARR. CABRIO, 911 CARR. S CABRIO, 911 CARR. 4 COUPE, 911 TURBO COUPE, 911 CARR. 4S COUPE, 911 TARGA 4, 911 TARGA 4S, 911 CARR. 4 CABRIO, 911 CARR. 4S CABRIO, 911 TURBO COUPE) - section on "Removing"

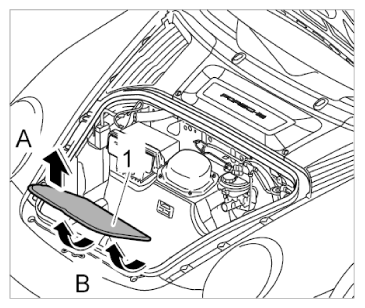

3. Lift up cover for tool kit -1-  at the front -Arrow A-  and remove it in an upward direction -Arrow B-  .
   Fig 2: Removing Cover For Tool Kit

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

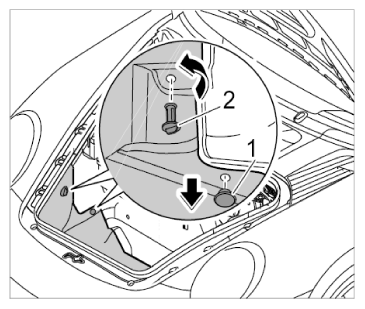

4. Unclip fixing clip -1-  and screw off plastic nut -2-  at the right and left.
   Fig 3: Loosening Luggage Compartment Pan

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

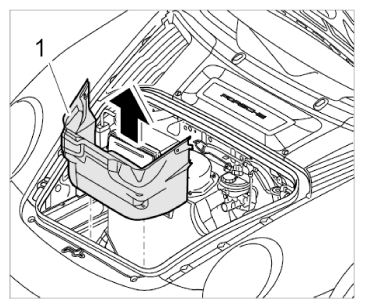

5. Lift up the luggage compartment pan -1-  and remove it.
   Fig 4: Removing Luggage Compartment Pan

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
