Removing Front Luggage Compartment Trim Panel (Bulkhead)

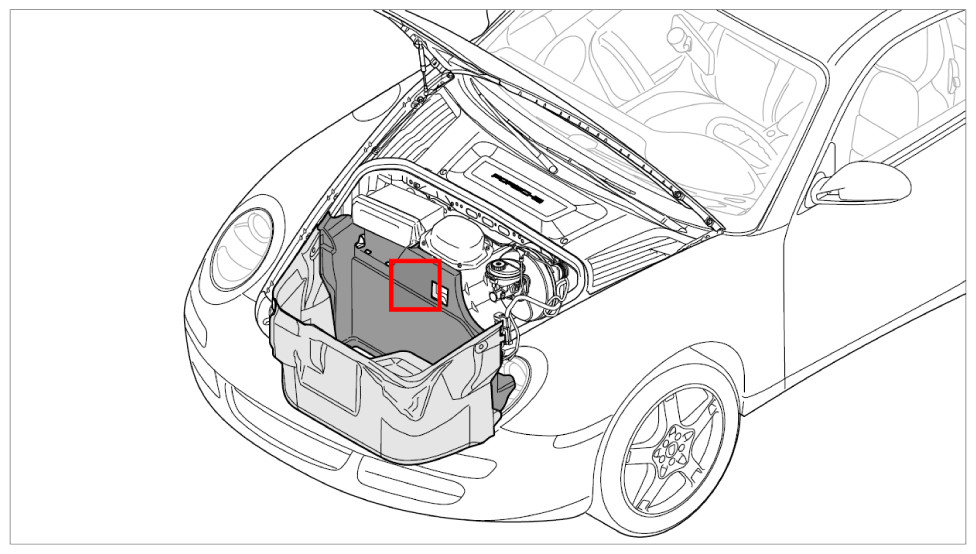

Fig 1: Identifying Front Luggage Compartment Trim Panel Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove luggage compartment cover. → WM 703019 REMOVING AND INSTALLING FRONT LUGGAGE COMPARTMENT COVER (ALL MODELS) - section on "Removing"
Information
- Only for USA/Canada vehicles.
Remove navigation unit. → WM 911219 REMOVING AND INSTALLING NAVIGATION UNIT (911 CARR. COUPE, 911 CARR. S COUPE, 911 CARR. CABRIO, 911 CARR. S CABRIO, 911 CARR. 4 COUPE, 911 TURBO COUPE, 911 CARR. 4S COUPE, 911 TARGA 4, 911 TARGA 4S, 911 CARR. 4 CABRIO, 911 CARR. 4S CABRIO, 911 TURBO) - section on "Removing"
Remove loudspeaker amplifier. → WM 914419 REMOVING AND INSTALLING LOUDSPEAKER AMPLIFIER (EXCEPT 911 TURBO S COUPE "ED. 918 SPYDER", 911 CARRERA 4 GTS, 911 TURBO S CABRIO "ED. 918 SPYDER", 911 CARRERA 4 GTS CABRIO, 911 GT3 RS 4.0) - section on "Removing"
Open cover for tire repair system -1- (-Arrow A- ) and remove it.

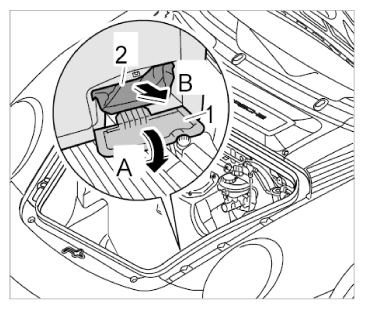

Fig 2: Removing Tyre Sealant
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove tire sealant -2- (-Arrow B- ).
Information

When removing the trim panel, make sure not to damage any lines or plug connections.
Loosen bulkhead trim panel -1- in -direction of arrow A- and lift it up and off -Arrow B- .

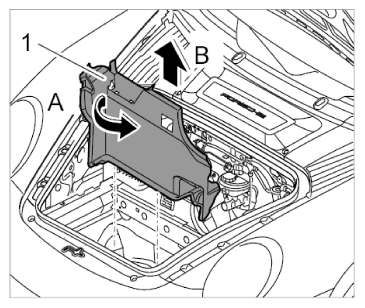

Fig 3: Removing Bulkhead Trim Panel
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unclip adapter for tire repair system -1- (-Arrow A- ) and remove it in a downward direction -Arrow B- .

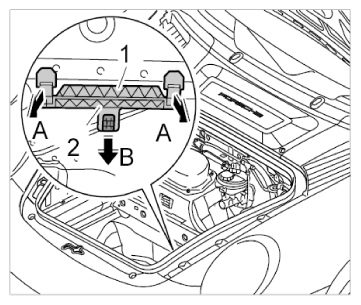

Fig 4: Removing Adapter For Tire Repair System
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Check clamp -2- and replace if necessary.
