Installing Front Luggage Compartment Trim Panel (Luggage Compartment Pan)

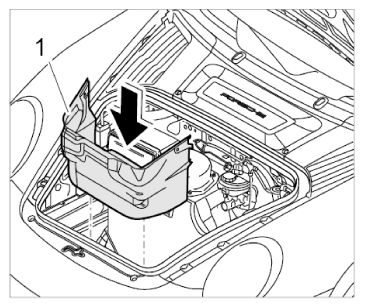

Insert and align luggage compartment pan -1- .

Fig 1: Installing Luggage Compartment Pan
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

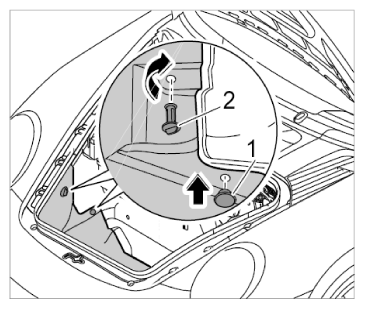

Press in fixing clip -1- and screw on plastic nut -2- at the right and left.

Fig 2: Securing Luggage Compartment Pan
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

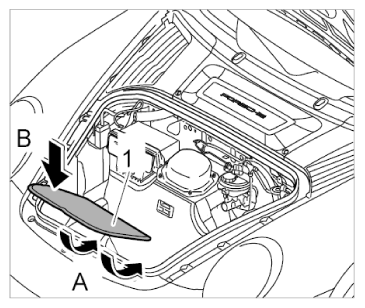

Insert cover for tool kit -1- into the luggage compartment in -direction of arrow A, B- .

Fig 3: Inserting Luggage Compartment Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install CD changer. → WM 916019 REMOVING AND INSTALLING CD CHANGER (911 CARR. COUPE, 911 CARR. S COUPE, 911 CARR. CABRIO, 911 CARR. S CABRIO, 911 CARR. 4 COUPE, 911 TURBO COUPE, 911 CARR. 4S COUPE, 911 TARGA 4, 911 TARGA 4S, 911 CARR. 4 CABRIO, 911 CARR. 4S CABRIO, 911 TURBO COUPE) - section on "Installing"
Information
- Only for USA/Canada vehicles.
Install front emergency release. → WM 556219 REMOVING AND INSTALLING FRONT EMERGENCY RELEASE (ALL MODELS) - section on "Installing"
