Installing Front Luggage Compartment Trim Panel (Bulkhead)

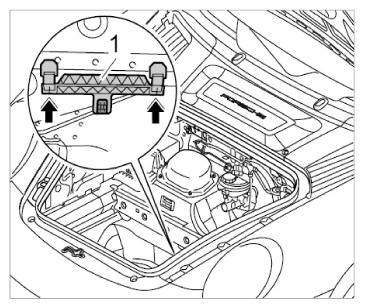

  1. Press in adapter for tire repair system -1-  in direction of arrow until it clicks into place.
    Fig 1: Installing Adapter For Tyre Repair System
    G09829064Courtesy of PORSCHE CARS NORTH AMERICA, INC.

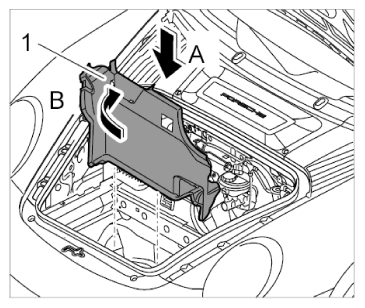

  2. Insert bulkhead trim panel -1-  (-Arrow A-  ) and align it -Arrow B-  .
    Fig 2: Installing Bulkhead Trim Panel
    G09829065Courtesy of PORSCHE CARS NORTH AMERICA, INC.

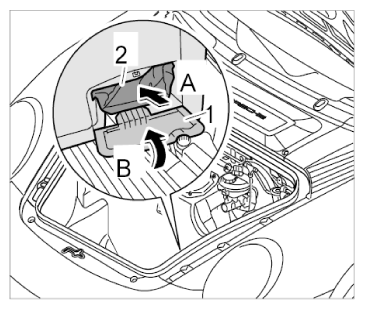

  3. Insert tire sealant -2-  (-Arrow A-  ) and close cover of tire repair system -1-  (-Arrow B-  ).
    Fig 3: Inserting Tyre Sealant
    G09829066Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Install luggage compartment cover. → WM 703019 REMOVING AND INSTALLING FRONT LUGGAGE COMPARTMENT COVER (ALL MODELS)  - section on "Installing"

    Information

    • Only for USA/Canada vehicles.
  5. Install navigation unit. → WM 911219 REMOVING AND INSTALLING NAVIGATION UNIT (911 CARR. COUPE, 911 CARR. S COUPE, 911 CARR. CABRIO, 911 CARR. S CABRIO, 911 CARR. 4 COUPE, 911 TURBO COUPE, 911 CARR. 4S COUPE, 911 TARGA 4, 911 TARGA 4S, 911 CARR. 4 CABRIO, 911 CARR. 4S CABRIO, 911 TURBO) - section on "Installing"
  6. Install loudspeaker amplifier. → WM 914419 REMOVING AND INSTALLING LOUDSPEAKER AMPLIFIER (EXCEPT 911 TURBO S COUPE "ED. 918 SPYDER", 911 CARRERA 4 GTS, 911 TURBO S CABRIO "ED. 918 SPYDER", 911 CARRERA 4 GTS CABRIO, 911 GT3 RS 4.0) - section on "Installing"
