Installing Cover Strip

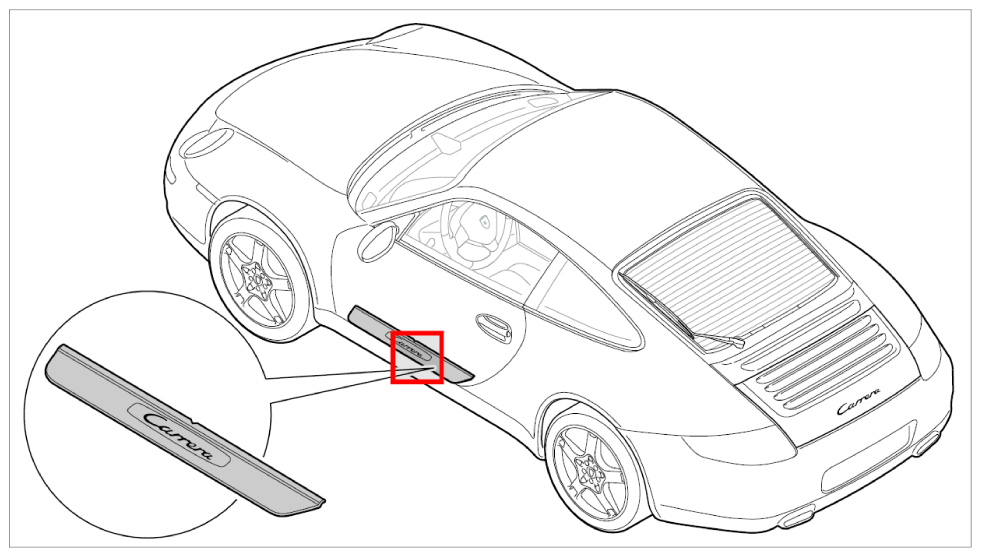

Fig 1: Identifying Cover Strip Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

• The bonding surface must be free of dirt and grease. Clean with cleaning solution if necessary.

1. Pull protective film off the bonding area of cover strip.

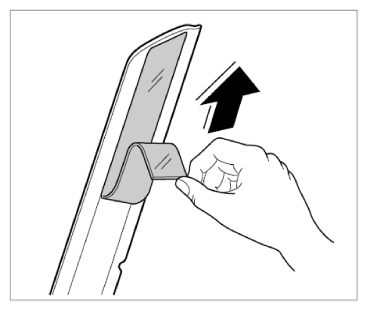

   Fig 2: Pulling Off Protective Film

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Position cover strip and apply. Centre notch in cover strip at height of bead.

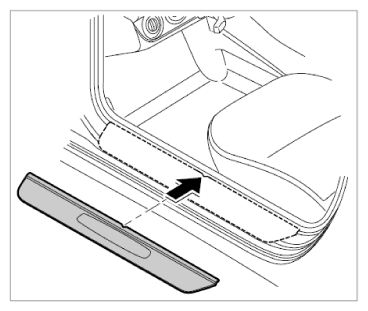

   Fig 3: Installing Cover Strip

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Press on cover strip firmly.
