Disassembling Roof Joint Cover Strip

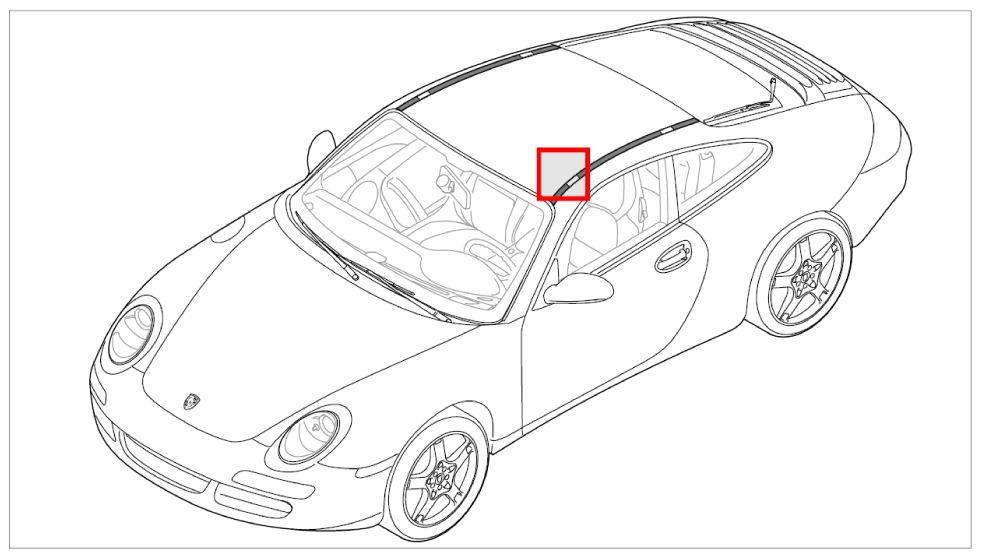

Fig 1: Identifying Roof Joint Cover Strip Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

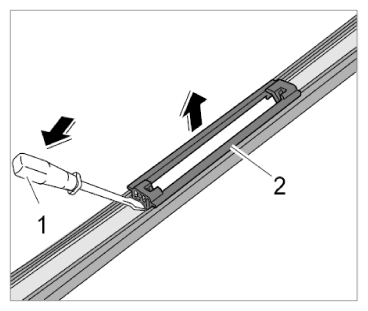

1. Insert a screwdriver -1-  beneath both ends of the fold-out element -2-  and press out.
   Fig 2: Removing Fold-Out Element

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

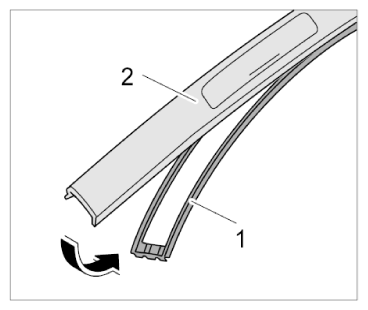

2. Pull roof frame seal -1-  from the roof joint cover strip -2-  .
   Fig 3: Pulling Off Roof Joint Seal

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

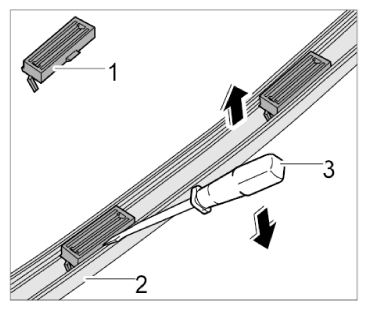

3. Between the roof joint clip -1-  and the roof joint cover strip -2-  insert a narrow screwdriver -3-  and press outwards until the roof joint clip disengages.
   Fig 4: Removing Roof Joint Clips

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
