Removing Antenna Amplifier

Information

The antenna amplifier is installed together with the PCM.

The antenna amplifier is located on the A-pillars.

Remove the ignition key and switch off the audio system.

1. Unplug the antenna plug for the windscreen -1, 2-  .
2. Unplug the plug connections for the antenna control unit -3, 4-  on the left-hand side and -3, 4, 5-  on the right-hand side.
3. Unscrew both fastening screws -6-  .

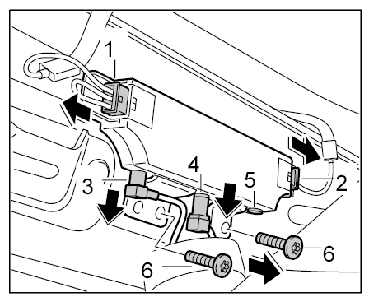

Fig 1: Removing Antenna Amplifier Plug Connector And Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
