Removing Control Module For Parkassist

Information

If the ParkAssist control unit has to be replaced, the values from the control unit should first be read out using the PIWIS Tester 9718  . → Programming Control Unit For Parkassist

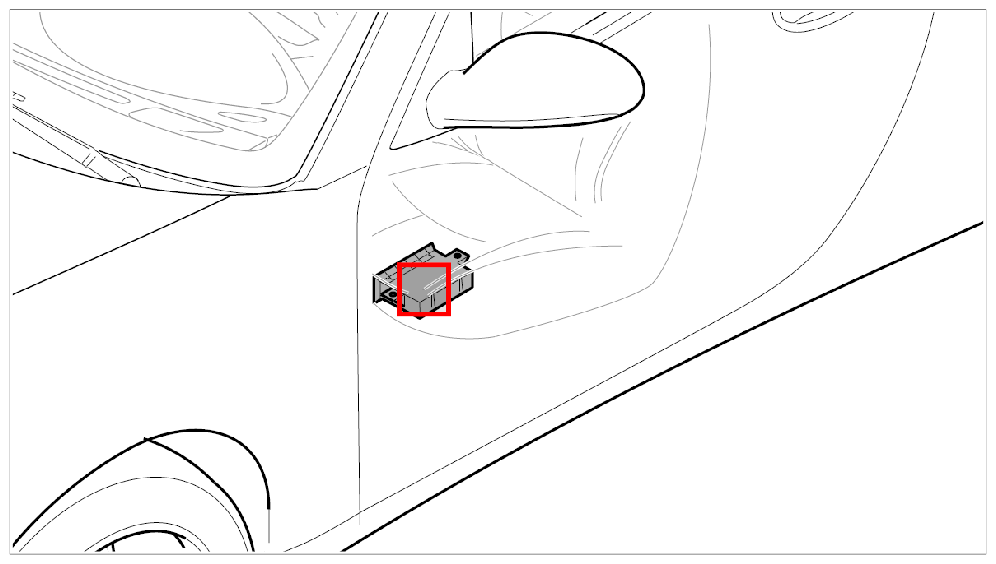

Fig 1: Identifying Control Module For Park Assist Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

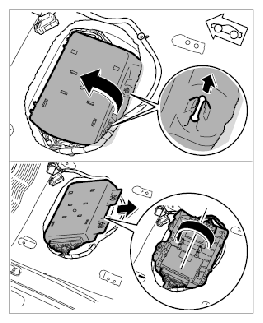

1. Push control unit forwards in direction of travel from behind, unclip it, detach it and turn the holder 180°.
   Fig 2: Turning Control Unit Holder

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

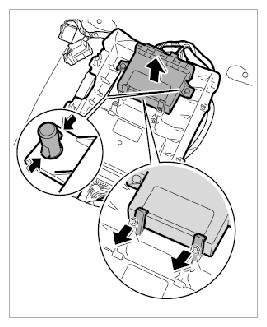

2. Push together the retaining tabs for the control unit and pull the two catches back. Lift control unit up and out.
   Fig 3: Removing Control Unit Retaining Tabs

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   NOTE: Voltage peaks

   • Risk of damage to load or to the control unit

   → Remove the ignition key and switch off load before disconnecting or removing load.

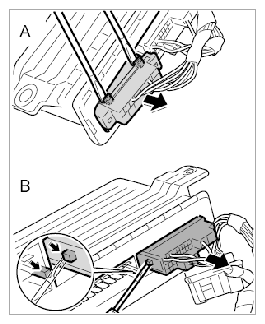

3. -A-  Carefully lever the connector away from the control unit using two screwdrivers.
4. -B-  Carefully lever the connector away from the control unit using one screwdriver.
Fig 4: Removing Control Unit Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
