Removing Outside Temperature Sensor

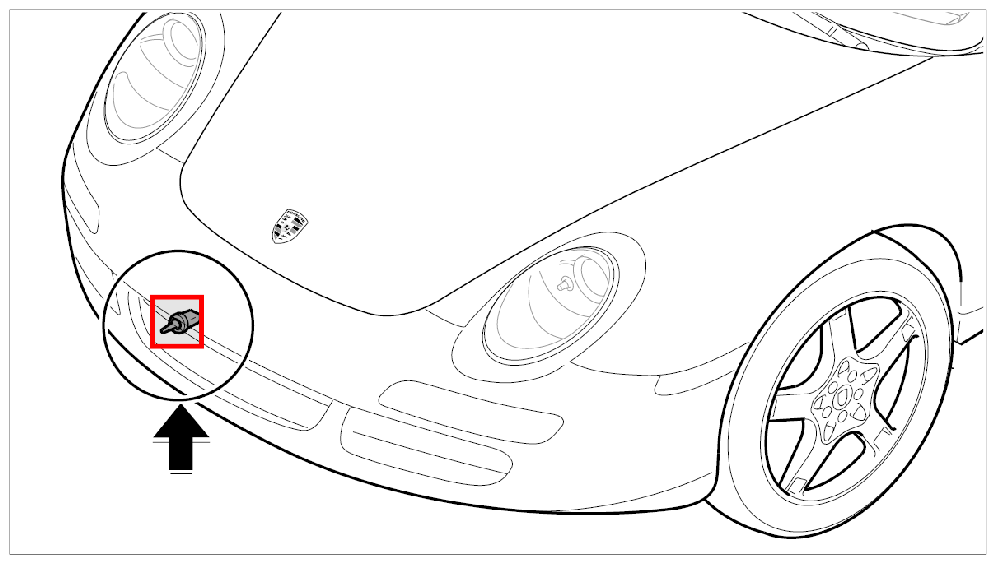

Fig 1: Identifying Outside Temperature Sensor Position
G09830593Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Reach into the opening in the floor and pull out the outside temperature sensor.
  2. Release electrical connector -a-  and pull out.

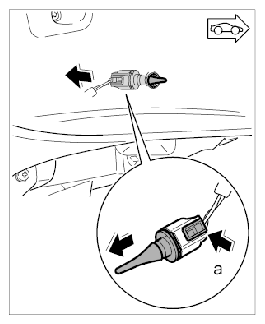

    3. Fig 2: Removing Outside Temperature Sensor
    G09830594Courtesy of PORSCHE CARS NORTH AMERICA, INC.
