Installing Outside Temperature Sensor

  1. Push electrical connector onto outside temperature sensor until it is felt to engage.

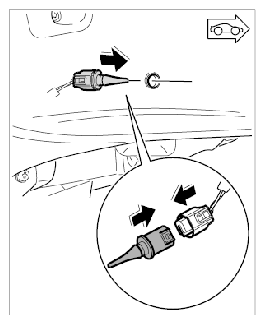

    Fig 1: Installing Outside Temperature Sensor Plug Connector
    G09830595Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Insert outside temperature sensor into its holder. Ensure that the temperature sensor is fitted securely.
