Installing CD Changer

Information

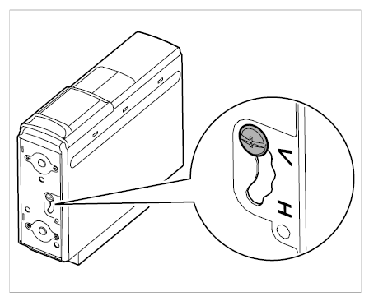

If a new CD changer is installed, the adjusting screw must be in position V  .

Fig 1: Identifying Adjusting Screw Position Of CD Changer

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

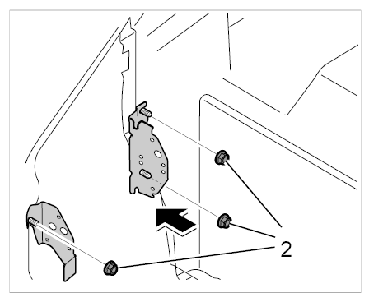

1. Place the retaining frame onto the threaded pins and screw down using the three fastening nuts -2-  . → Tightening torque: 6.5 Nm (5 ftlb.)
   Fig 2: Installing Retaining Frame Fastening Nuts

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Plug the electric connectors into the CD changer until they are felt to engage.

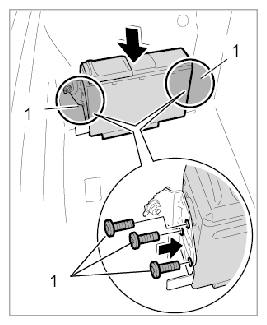

3. Insert the CD changer into its retaining frame and screw down tight with the six fastening screws. → Tightening torque: 2.5 Nm (2.0 ftlb.)
   Fig 3: Installing Fastening Screws

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
