Installing Mobile Communication Antenna

  1. Clip mobile communication antenna at the left and right into the cowl panel cover -2-  .
  2. Secure mobile communication antenna with both fastening screws -3-  .

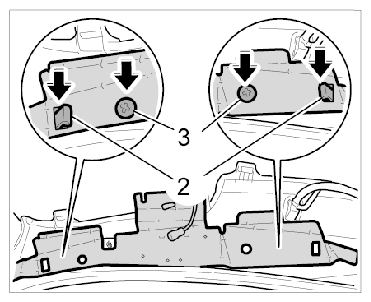

    Fig 1: Installing Mobile Communication Antenna Mounting
    G09830565Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Connect the antenna lead and clip on the fuse.
  4. Slide the mobile communication antenna onto the holder and secure it with the fastening screws -1-  .

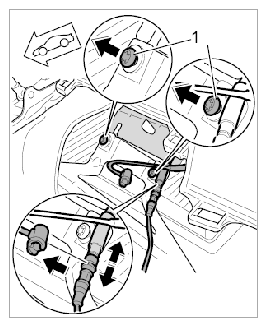

    5. Fig 2: Installing Antenna Line And Fastening Screw
    G09830566Courtesy of PORSCHE CARS NORTH AMERICA, INC.
