Removing Loudspeaker Amplifier

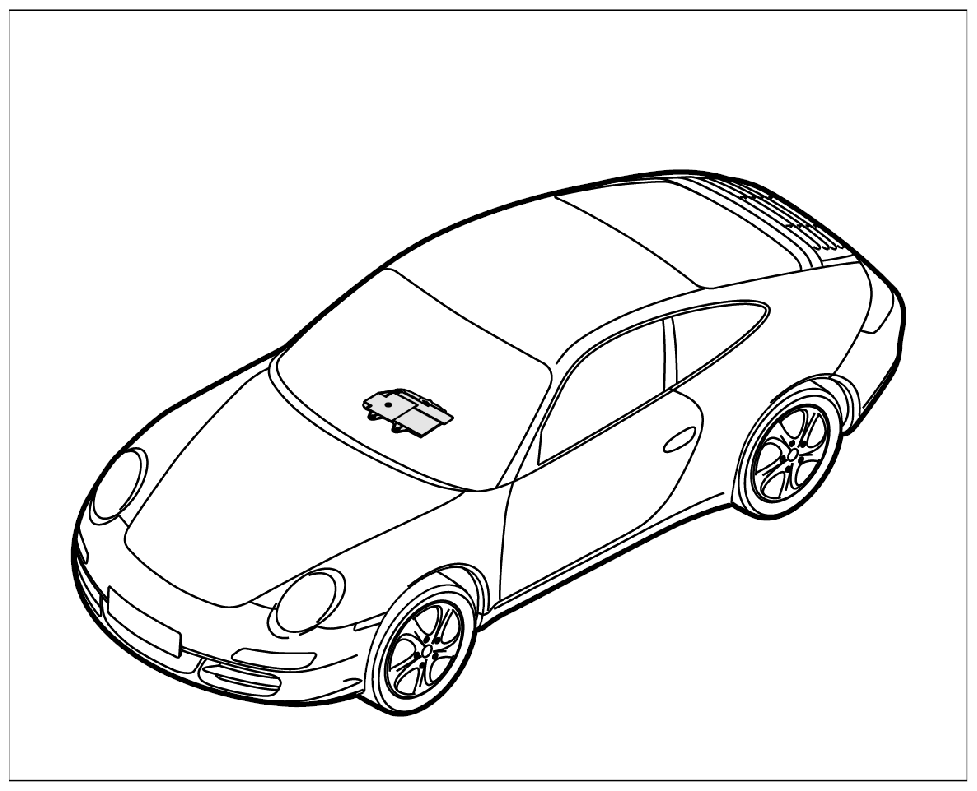

Fig 1: Identifying Loudspeaker Amplifier Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Remove the ignition key and switch off load before disconnecting or removing load.

Information

If the amplifier is to be replaced, the coding must be read out using the PIWIS tester 9718  before removing the amplifier.

1. Unscrew the two fastening screws -1-  .
2. Unscrew fastening nut -2-  .
3. Pull off retaining clip -3-  with electric line on the loudspeaker amplifier.

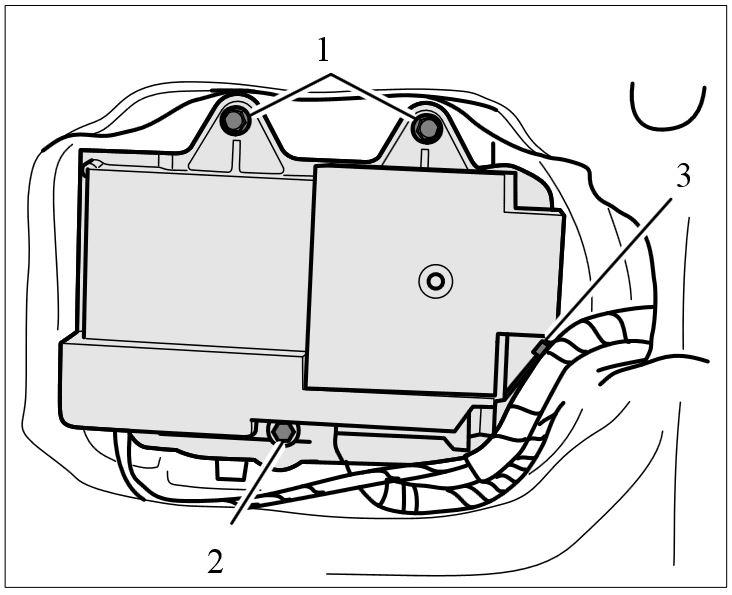

   Fig 2: Identifying Fastening Screws And Nuts

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Release electric plug connections -a-  and pull connectors off the loudspeaker amplifier.

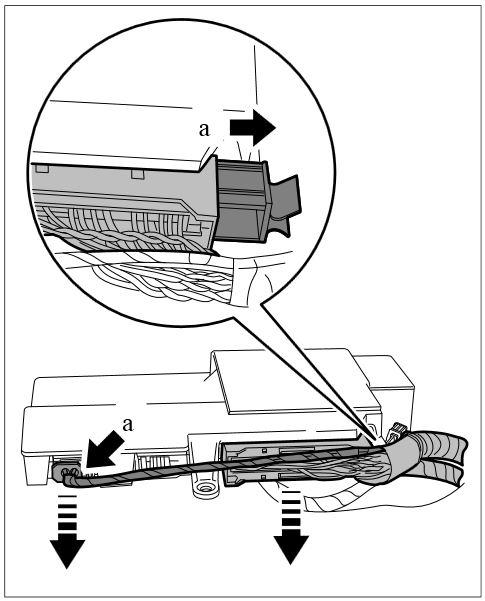

   Fig 3: Removing Electric Plug Connector

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Take out the control unit.
