Installing Loudspeaker Amplifier

Push in electric plug connections for the loudspeaker amplifier until the connectors engage securely.

1. Connect central electric connector -4-  to the loudspeaker amplifier and lock it.
2. Slide on retaining clip on loudspeaker amplifier -3-  .

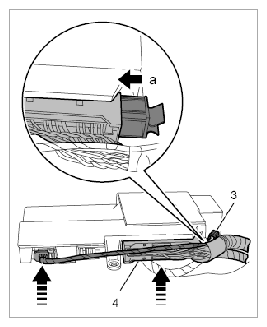

Fig 1: Installing Electric Plug Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Position loudspeaker amplifier at the underbody mounting point.
4. Secure the loudspeaker amplifier with the fastening screws -1-  and fastening nut -2-  .

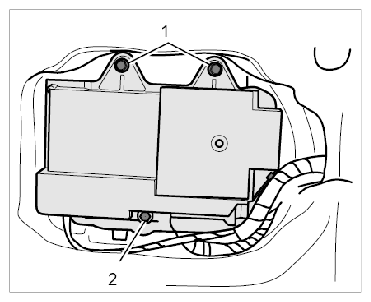

Fig 2: Identifying Fastening Screws And Nuts
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
