Installing Subwoofer

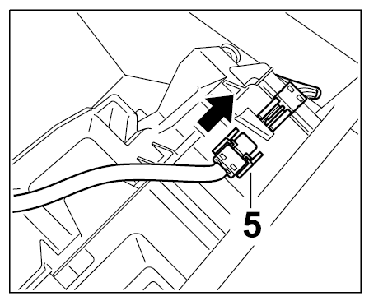

Push in plug connection -5- until the plug engages.

Fig 1: Installing Electric Plug Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

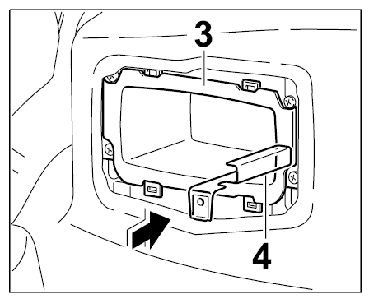

Push sound package -3- into bracket -4- as far as the stop.

Fig 2: Installing Sound Package Into Bracket
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

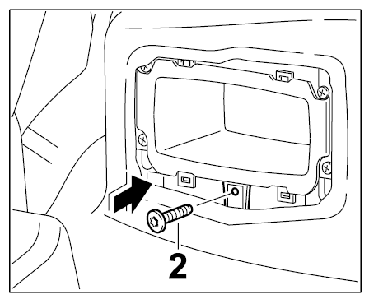

Screw in fastening screws -2- left and right. Tightening torque: 7.2 Nm (5.5 ftlb.)

Fig 3: Installing Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

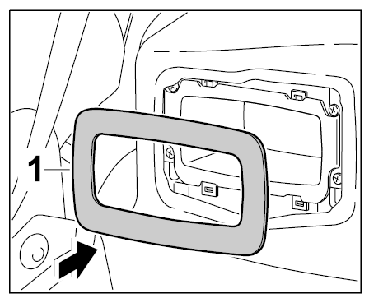

Position trim -1- and press into place.

Fig 4: Installing Trim
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
