Removing GPS Antenna

  1. Release and remove electric plug connection -A-  on the cowl panel cover.

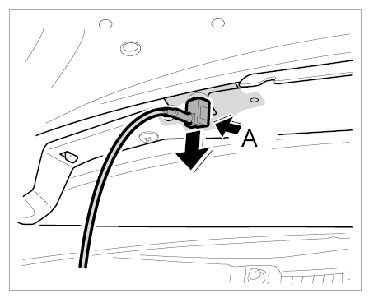

    Fig 1: Removing GPS Electric Plug Connection
    G09830488Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Remove splash guard for particle filter from the cowl panel cover.
  3. Unscrew the fastening screw -1-  and pull the GPS antenna out of the cowl panel cover.

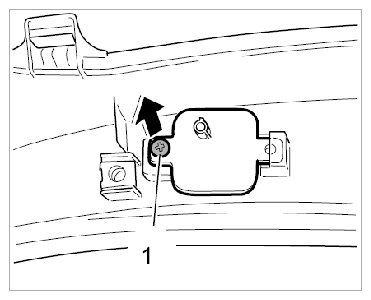

    Fig 2: Removing GPS Fastening Screw
    G09830489Courtesy of PORSCHE CARS NORTH AMERICA, INC.
