Installing Cigar Lighter

  1. Push in the cigar lighter into the center console until the cigar lighter clicks into place in the center console.

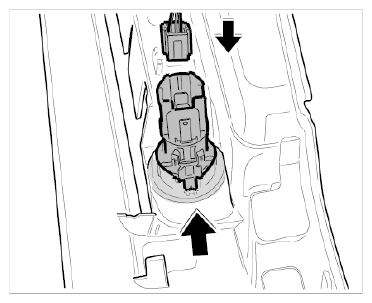

    Fig 1: Installing Cigar Lighter Into Center Console
    G09830453Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Connect the electric plug.
