Removing Passenger's Footwell Socket

Fig 1: Locating Passenger's Footwell Socket
G09830446Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Loosen the fastening nuts -1-  and pull to the rear over the electric wire.

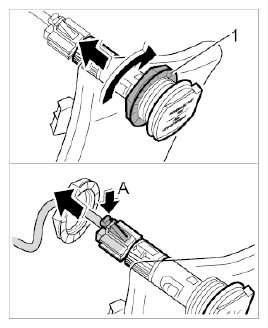

    Fig 2: Removing Fastening Nuts And Electric Connection
    G09830447Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Unlock electrical plug -A-  and pull from the socket.
