Removing Center Console Socket

Fig 1: Locating Center Console Socket
G09830448Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Turn center console, unlock electrical plug -A-  and pull from the socket.

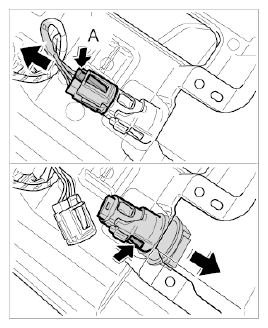

    Fig 2: Removing Center Console Socket
    G09830449Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Unlock socket and pull out of the center console.
