Installing The Center Console Socket

  1. Insert the socket into the center console until it clicks into place.

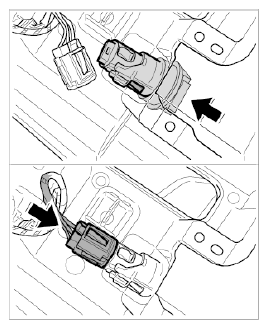

    Fig 1: Installing Center Console Socket
    G09830450Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Push electrical plug onto socket until plug is felt to engage.
