Installing Gateway Control Unit

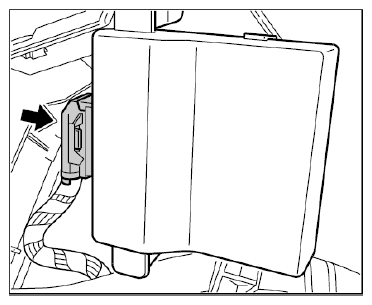

- Push on electric connector until it engages securely on the gateway control unit.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

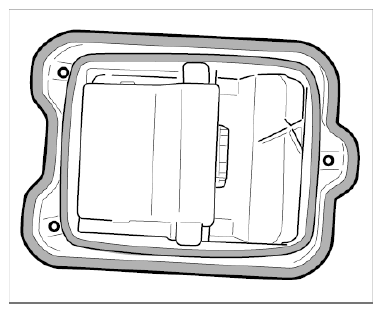

- Check the seal on the cover and replace seal or cover and seal if necessary.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

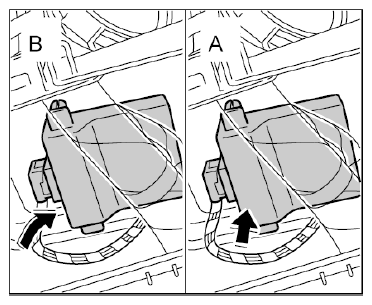

- Slide the gateway control unit into the cover -B-
and clip it in -A-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

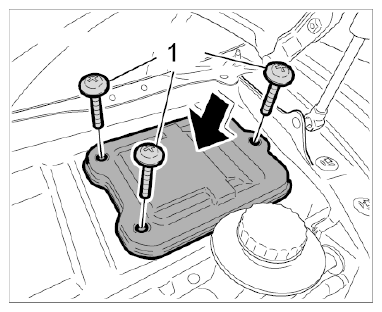

- Fit the cover and secure with the three fastening screws -1-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- If a new gateway control unit has been installed, it must be coded on the vehicle. → Coding Gateway Control Unit
