Installing Instrument Cluster

Position the instrument cluster, connect the electrical plug and lock.

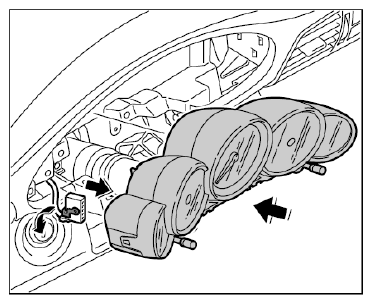

Fig 1: Installing Instrument Cluster
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
The instrument cluster has two retaining clips; push instrument cluster into the dashboard and press on until the retaining clips engage.
Screw down instrument cluster with both fastening screws -1- . → 4.2x16-C: 2.3 Nm (2.0 ftlb.)

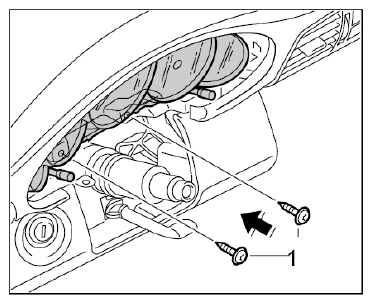

Fig 2: Installing Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
If a new instrument cluster was installed, → Programming The Instrument Cluster
