Removing Dashboard Inset

  1. Adjust the steering wheel as far down and as far back as it will go (as seen from the direction of travel)
  2. Unclip both ends of the ornamental strip to the left and right
  3. Unfasten securing screws -1-  and -2-  .

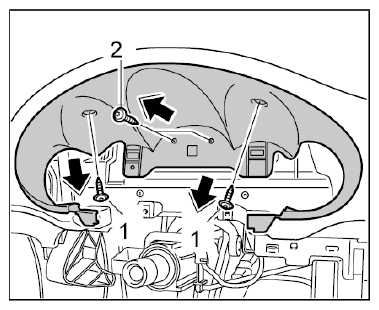

    Fig 1: Removing Dashboard Insert
    G09635431Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Push down the dashboard insert out of the dashboard mounting from the top using a plastic trowel.

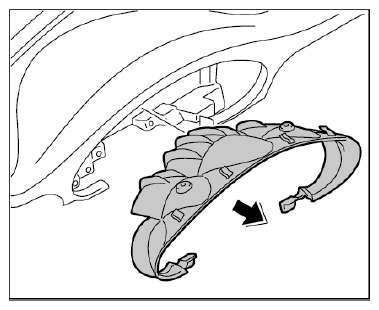

Fig 2: Pulling Out Dashboard Insert
G09635432Courtesy of PORSCHE CARS NORTH AMERICA, INC.
