Installing Dashboard Inset

  1. Position the dashboard insert in the dashboard mounting and use the fastening screws -1-  → 4, 2X13-C: 1 ftlb  and -2-  → 4, 2X13-C: 1 ftlb  to screw it firmly into place.

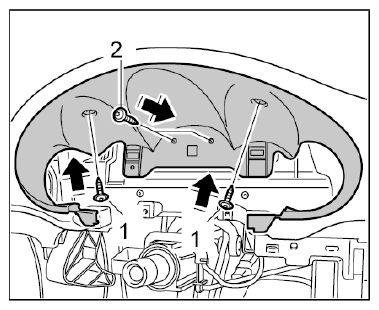

    2. Fig 1: Installing Dashboard Insert
    G09635433Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Clip in both the end caps for the ornamental strip.
