Detaching Selector Lever Cable Inside Vehicle

WARNING: This page is about a different variant/trim than selected.

Move selector lever to position P.
Open bayonet lock.

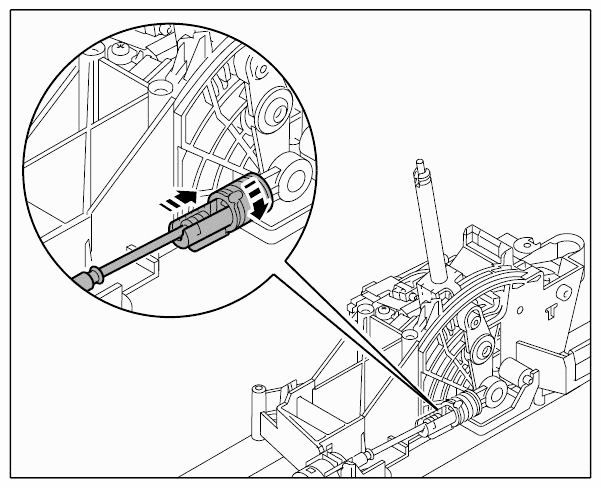

Fig 1: Opening Bayonet Lock
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Detach adjustment pins.

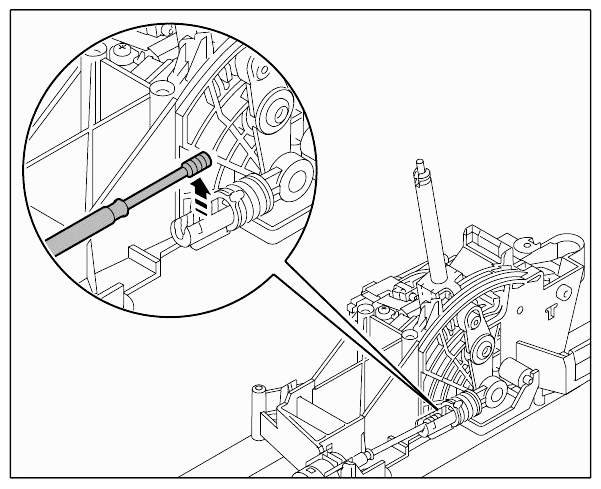

Fig 2: Disengaging Selector Cable
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unclip support bracket at selector frame.

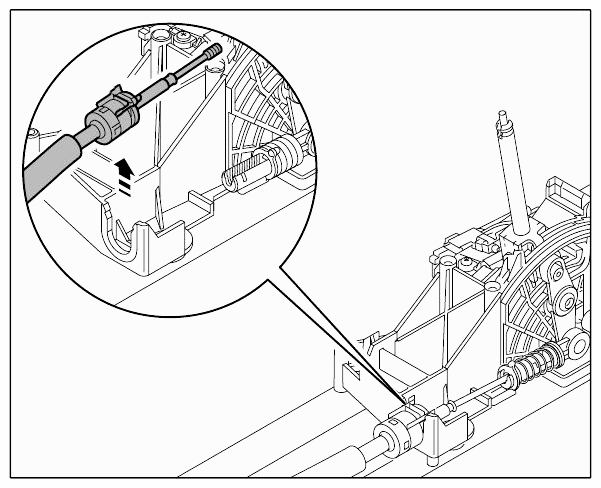

Fig 3: Removing Support Bracket
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
