Loosening Wire Harness For SDARS Antenna

WARNING: This page is about a different car, the 2012 Porsche Boxster, 2011 Porsche Boxster, 2010 Porsche Boxster, 2009 Porsche Boxster, and 2008 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

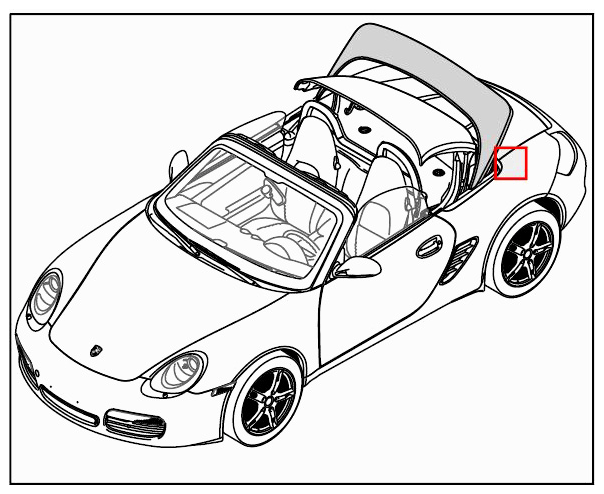

Fig 1: Identifying Removal Position Of Hood Compartment Lid
G09590509Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Unclip plug connection for SDARS antenna -1-  from the bracket -2- (-arrow A-)  .
  2. Release plug connection for SDARS antenna -1-  at the locking lug and pull it off -arrows B-  .
  3. Disengage wire harness for SDARS antenna -3-  at the fastening part -4- (-arrow C-)  and pull it off.

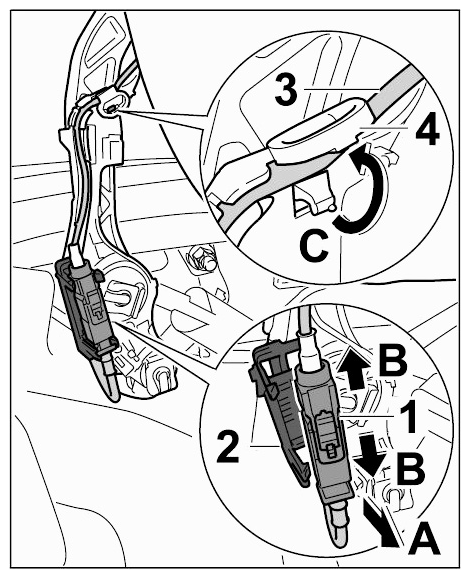

    4. Fig 2: Loosening SDARS Antenna
    G09590510Courtesy of PORSCHE CARS NORTH AMERICA, INC.
