Installing Convertible Top Lock

WARNING: This page is about a different car, the 2012 Porsche Boxster, 2011 Porsche Boxster, 2010 Porsche Boxster, 2009 Porsche Boxster, and 2008 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

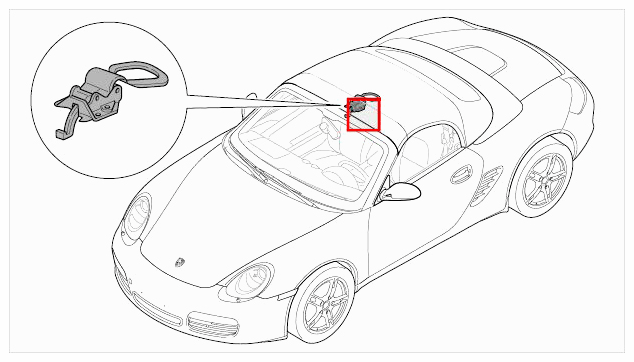

Fig 1: Identifying Installation Position Of Convertible Top Lock
G09590308Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Position convertible top lock -1-  from below -arrow-  on the roof frame -2-  .
  2. Coat the four fastening screws -3-  with screw-locking lacquer and tighten. → Tightening torque: 4.5 Nm (3.5 ftlb.)

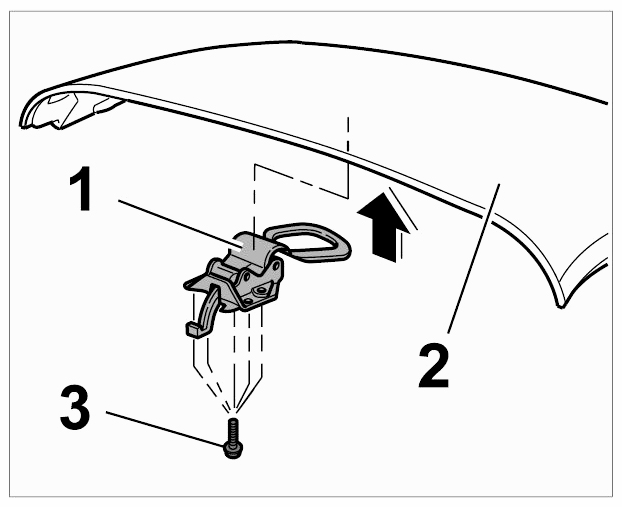

    3. Fig 2: Installing Convertible Top Lock
    G09590309Courtesy of PORSCHE CARS NORTH AMERICA, INC.
