Diagram Of Convertible Top

WARNING: This page is about a different car, the 2012 Porsche Boxster, 2011 Porsche Boxster, 2010 Porsche Boxster, 2009 Porsche Boxster, and 2008 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

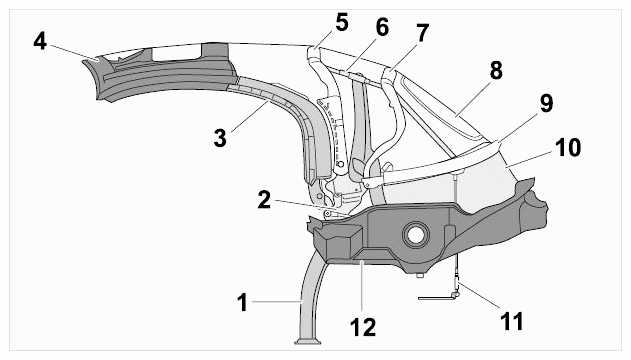

Fig 1: Identifying Convertible Top Components
G09590164Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Roll-over bar
  2. Convertible-top support
  3. B-pillar
  4. Roof frame
  5. Main bow
  6. Tension strap
  7. Corner bow
  8. Convertible-top covering
  9. Tension bow
  10. Cloth
  11. Tension cable
  12. Water drip pan
