Removing clutch pedal

WARNING: This page is about a different variant/trim than selected.

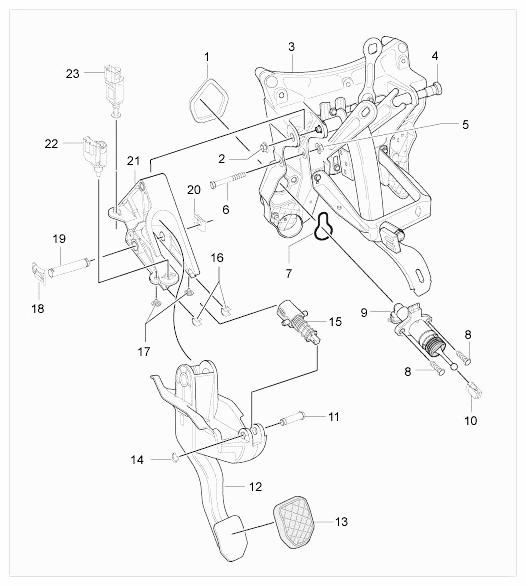

Fig 1: Overview Of Pedals

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove -clutch power spring on clutch pedal (arrows)- . Compress the clutch power spring (depress pedal lightly). As it becomes free, secure the hole in the bolt of the clutch power spring with a cotter pin or similar.

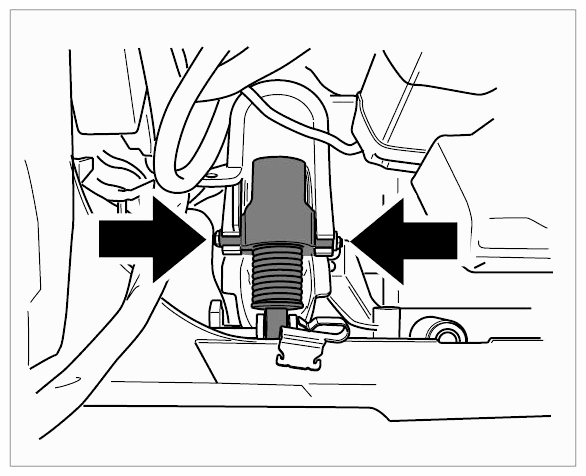

Fig 2: Compressing Clutch Power Spring (Depress Pedal Lightly)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Depress the pedal and pivot the clutch power spring from front to rear through 180° (against direction of travel) -arrow- and unclip from the bearings. -item 15-

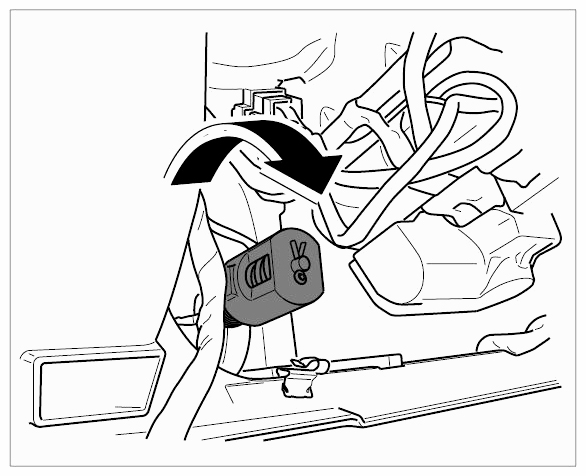

Fig 3: Pivoting Out Clutch Power Spring
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove -lock for clutch power spring bolt (arrow)- . If necessary, carefully drive the bolt out with a hammer and drift and take out the clutch power spring. -item 11-

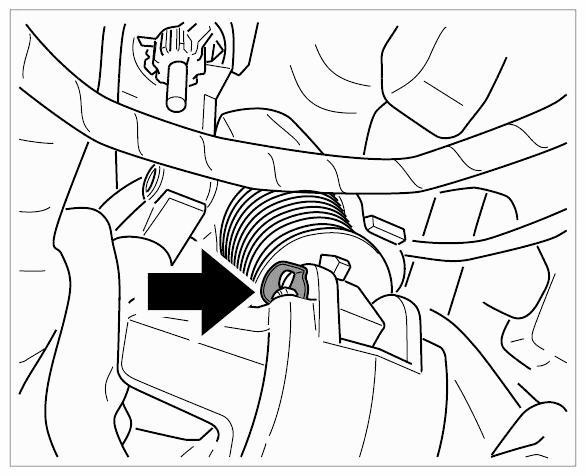

Fig 4: Locating Left Lock Of Clutch Power Spring
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove lock on pin (clutch pedal shaft) -arrow- . -item 20-

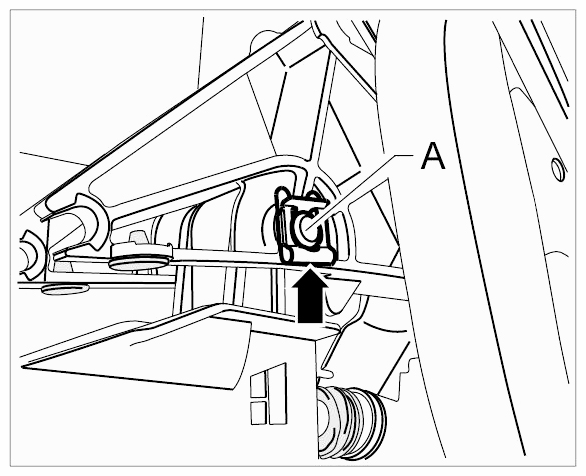

Fig 5: Locating Right Lock On Pin, Clutch Pedal
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
The left lock remains on the pin (clutch pedal shaft). -arrow- Slide the bearing pin fully to the left. Disconnect wiring harness and set it aside if necessary. -Position 18, 19-

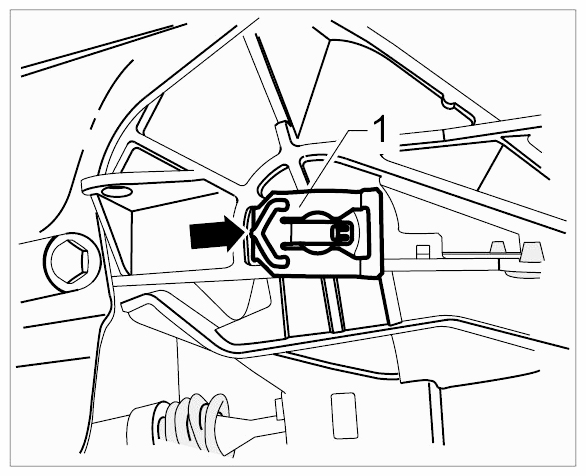

Fig 6: Locating Left Lock On Pin, Clutch Pedal
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Detach push rod of master cylinder from the pedal. To do this, insert the pliers T10005 into the cut-outs on the clutch pedal. Remove clutch pedal. -item 12-

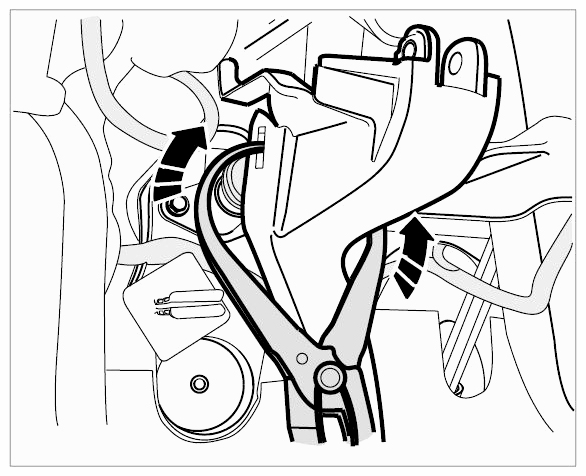

Fig 7: Disengaging Clutch Pedal
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
