Removing Transmission

WARNING: This page is about a different variant/trim than selected.

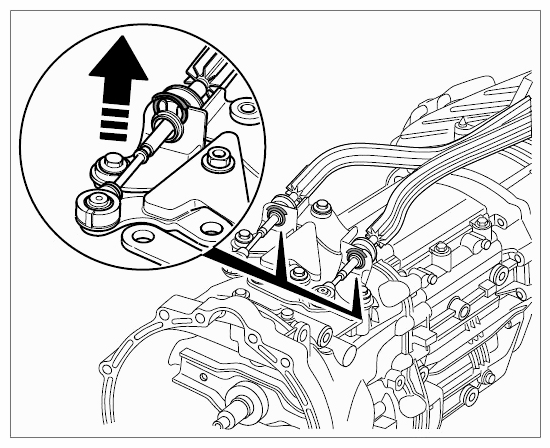

Remove circlips -inset- on support on the transmission.

Fig 1: Removing Of Circlips
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

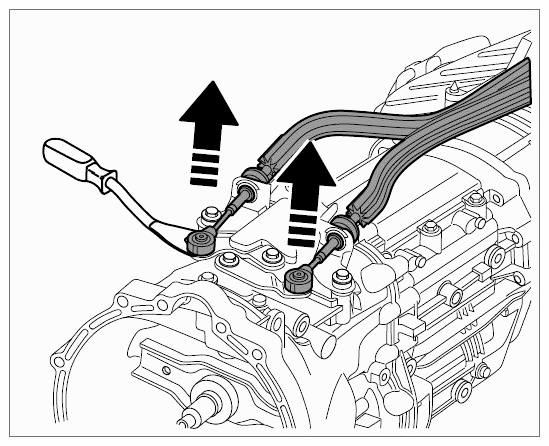

Remove shift and selector cables from support using special tool removal tool, universal nr.21. Remove selector support with cables.

Fig 2: Removing Shift And Selector Cables From Support
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

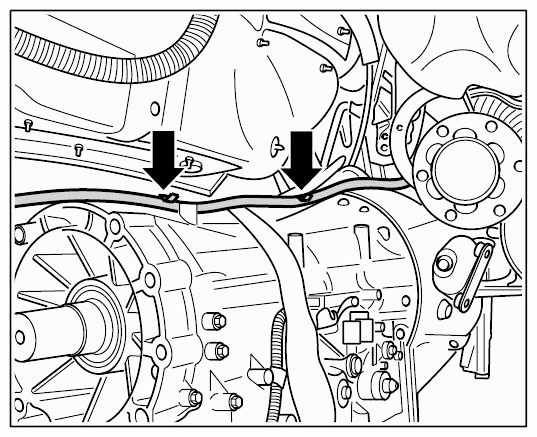

Loosen vent line from holders and remove it.

Fig 3: Locating Vent Line Holder
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

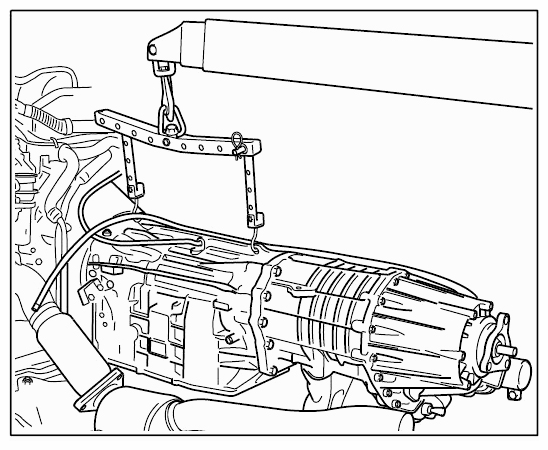

Attach transmission with support suspending device 2024 a on workshop crane.

Fig 4: Attaching Transmission With Support Suspending Device (2024)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

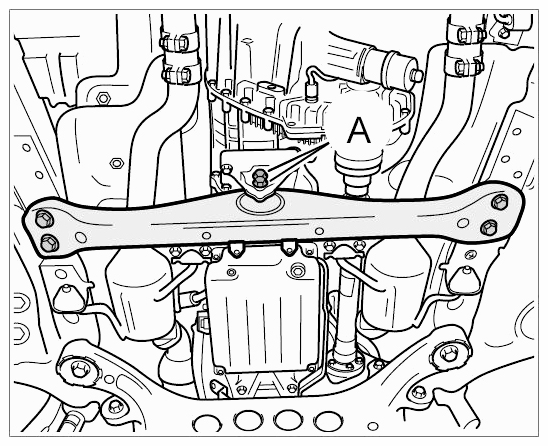

Raise transmission a few centimeters and notch transmission cross member B -A- .

Fig 5: Identifying Transmission Cross Member
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

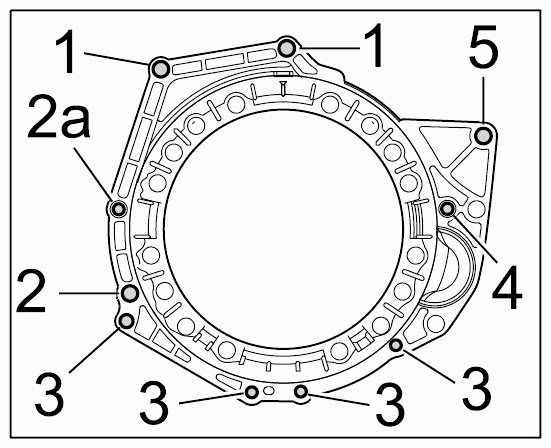

Unscrew fastening screws for securing transmission to engine. This involves unscrewing four screws on the engine side and six on the transmission side.

Fig 6: Identifying Transmission To V6 Engine Threaded Joint Points
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove transmission.
