Topping Up Transmission Oil
WARNING: This page is about a different variant/trim than selected.
WARNING:
Hot fluid
- Danger of scalding
→ Let the fluid cool down.
→ Wear personal protective gear.
WARNING:
Hot fluid
- Danger of scalding
→ Let the fluid cool down.
→ Wear personal protective gear.
Information
- Secure vehicle to prevent it rolling away.
- To check transmission oil the vehicle must be horizontal.

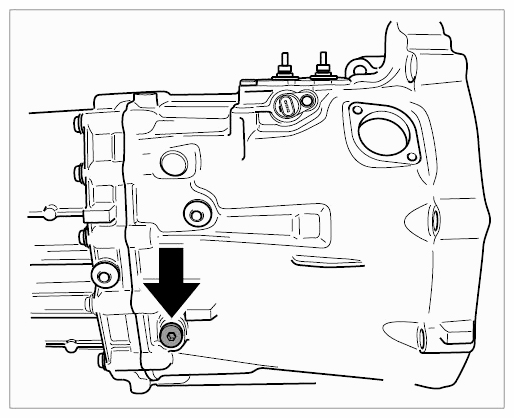

- Unscrew oil inspection plug -arrow-
.
Information
Use only oil approved by Porsche.
- Top up oil using oil filler for ATF up to lower edge of oil inspection plug -arrow- .
- Screw in oil inspection plug -arrow- with a new sealing ring. → Tightening torque: 35 Nm
