Removing Stabiliser

Component overview - anti-roll bar →

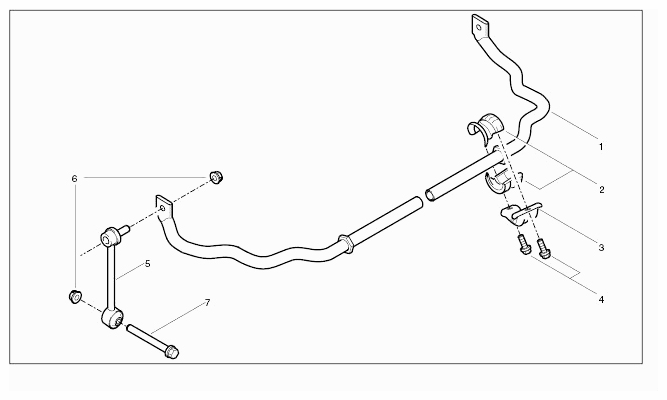

Fig 1: Identifying Anti-Roll Bar Components

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Anti-roll bar
2. Anti-roll-bar mount
3. Clamp
4. Fastening screws
5. Connecting rod
6. Fastening nut
7. Fastening screw

1. Release connecting rod at anti-roll bar on left and right. To do this, use a suitable lift to raise the wheel carrier so far that the pin of the connecting rod can be pulled easily out of the anti-roll bar. Use a suitable lift with rubber base -see Fig 2- to prevent slipping.

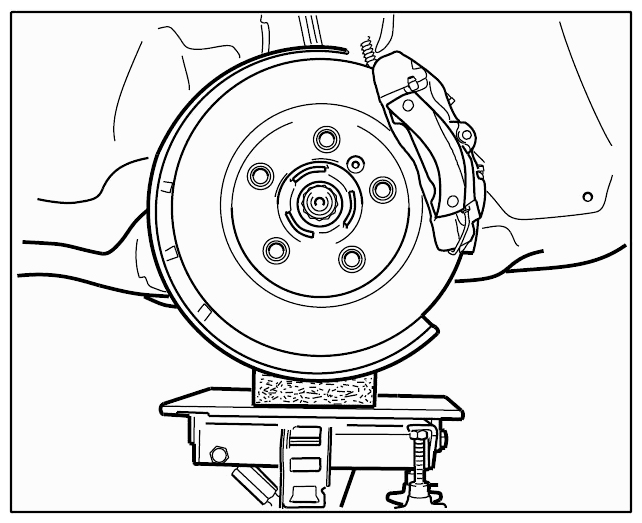

   Fig 2: Placing Wheel Carrier On Rubber Base

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Undo the four fastening screws and remove the clamps.
3. Mark the installation position -arrow-  of the anti-roll-bar mount halves with respect to the anti-roll bar with a paint marker.

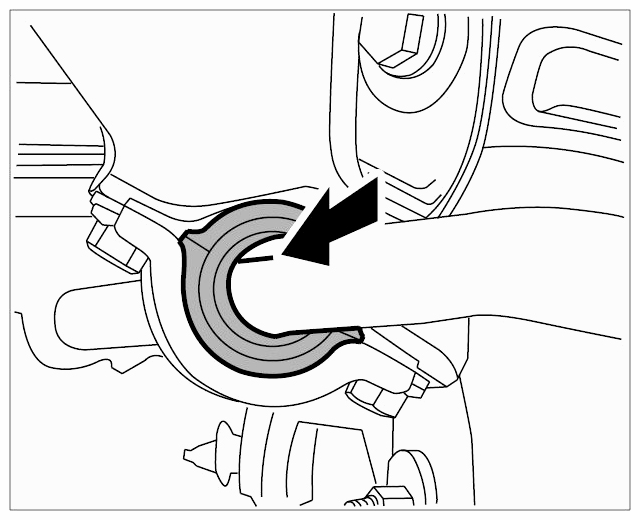

   Fig 3: Locating Installation Position

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Carefully pull out the anti-roll bar.
