Removing Rear Spring Strut (Steel Springs)

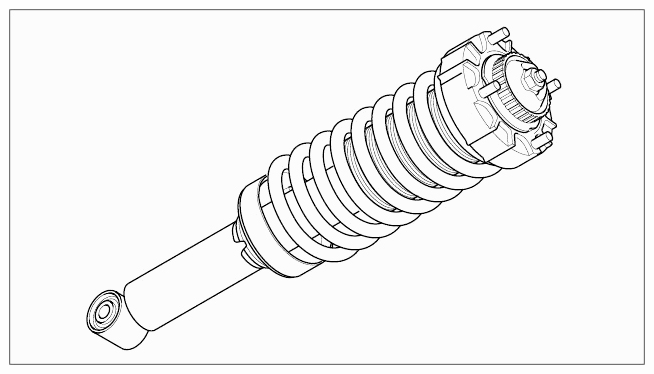

Fig 1: Identifying Rear-Axle Spring Strut (Steel Springs, Complete)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

• Spring strut screws are under tension. Use a suitable lift with rubber base.

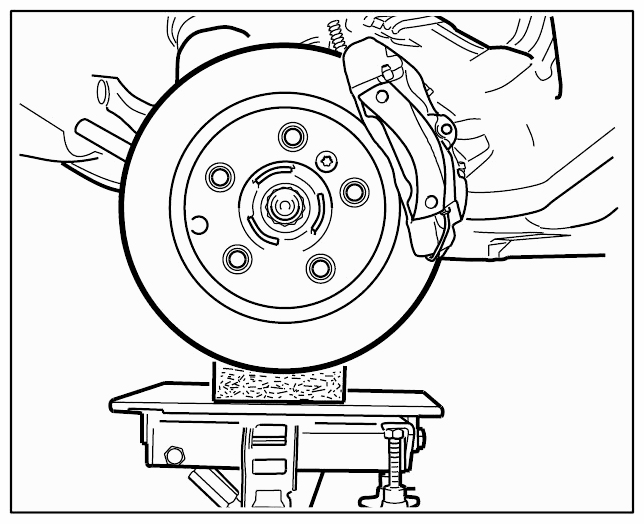

Fig 2: Identifying Symbolic Representation

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Remove spring strut at wheel carrier. Let connecting rod hang to the side.
2. Release spring strut at top (four screws at the damper housing) -arrows-  . To do this, use a 3/8 inch changeover ratchet with extension and universal joint.

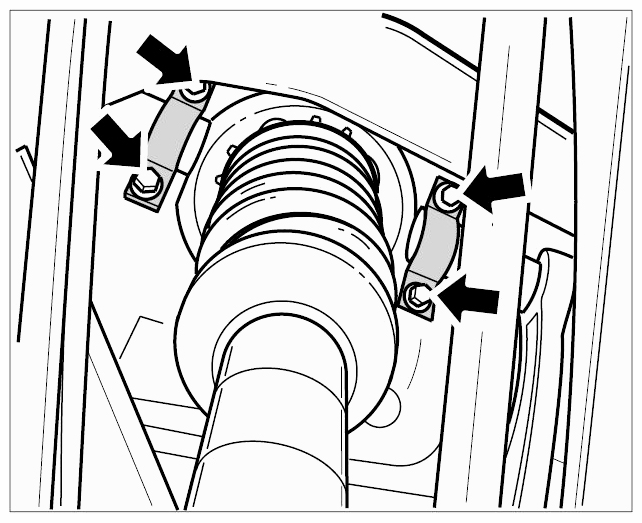

   Fig 3: Locating Damper Housing Screws

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Carefully remove the spring strut assembly with damper housing from the vehicle.
