Removing Bearing For Trailing Arm

→ Read specific safety information for the press.

→ Check that the press is working perfectly before use, particularly the safety components.

→ Read specific safety information for the press.

→ Check that the press is working perfectly before use, particularly the safety components.

Information

• The bearing is replaced using the assembly fixture T10230.
• Pressure head no. 13 is used from the selection of attachments T10205.

1. Release brake calliper and hang at a suitable position in the wheel housing → WM 474119 REMOVING AND INSTALLING REAR BRAKE CALLIPER . Do not open the brake system.
   Fig 1: Removing Brake Calliper

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

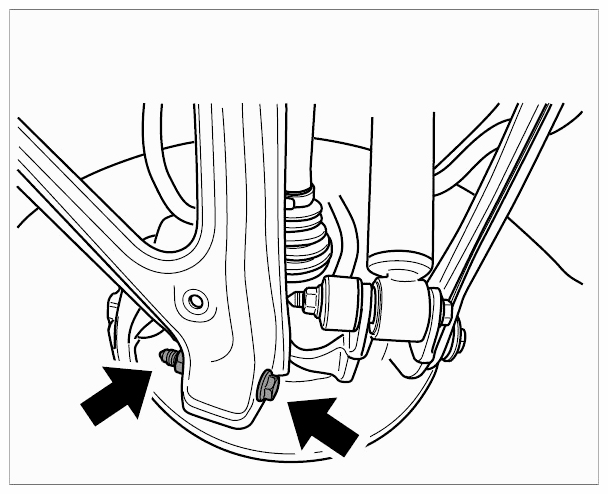

2. Loosen the lower trailing arm at the mount -arrows-  .
   Fig 2: Locating Lower Trailing Arm Mounting Nut

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

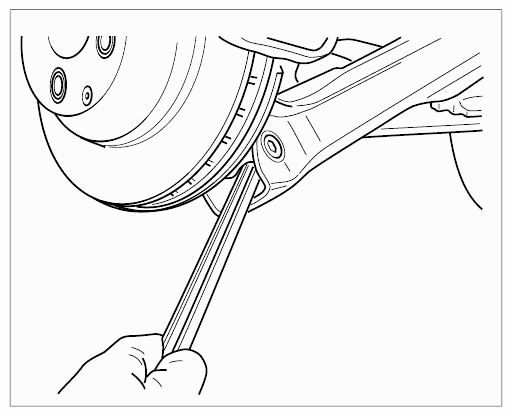

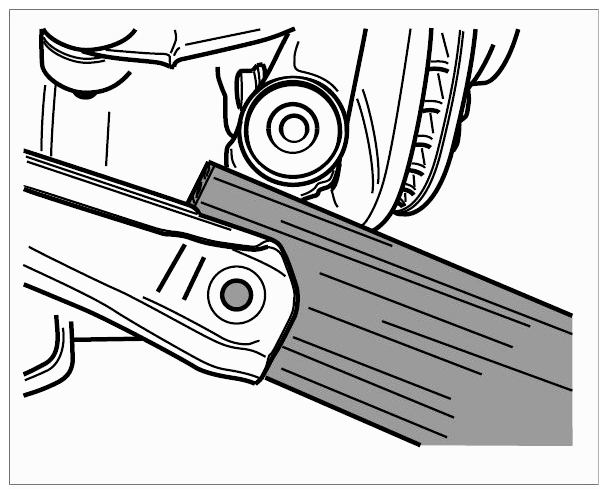

3. Insert tyre mounting lever between the wheel bearing housing and the trailing arm -siehe illustration-  . Press the trailing arm down until the bearing is freely accessible. Do not damage the brake cover plate.
   Fig 3: Inserting Tyre Mounting Lever Between Wheel Bearing Housing And Trailing Arm

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

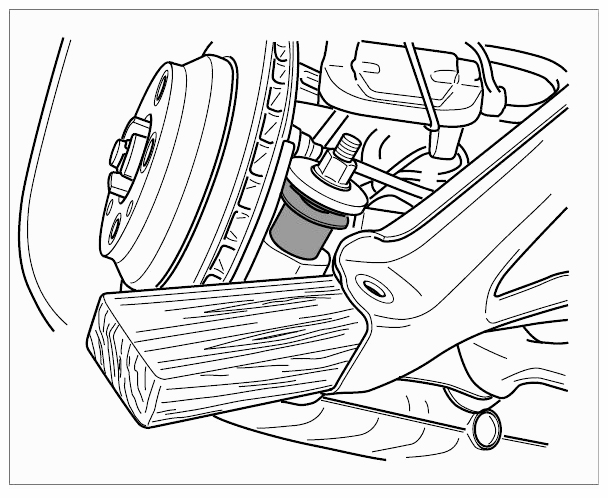

4. Press the lower trailing arm down further until a suitable spacer -siehe illustration-  (e.g. wooden block) can be inserted (makes removal easier).
   Fig 4: Identifying Lower Trailing Arm

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

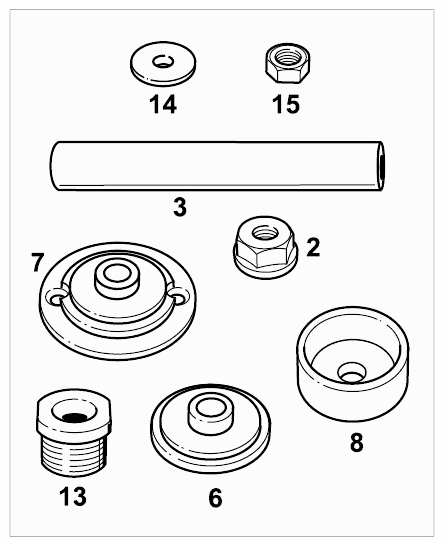

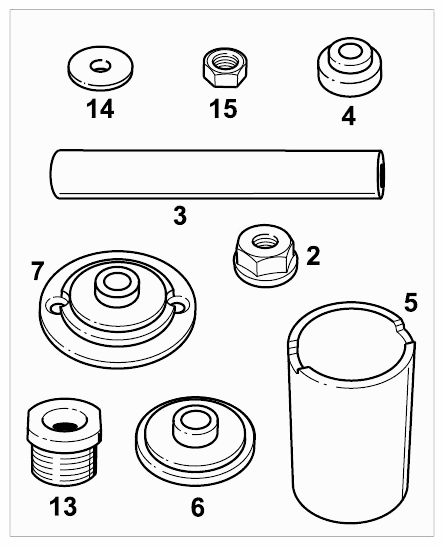

5. The pressure pieces and the tubular piston cylinder VAS 6178 are used for removal. No. 13 is screwed into the tubular piston cylinder. No. 2 is screwed on to the threaded rod and positioned in No. 13 for pressing out the bearing.
   Fig 5: Identifying Pressure Pieces And Tubular Piston Cylinder

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   • T10230/2
   • T10230/3
   • T10230/4
   • T10230/5
   • T10230/6
   • T10230/7
   • T10230/13
   • T10230/14
   • T10230/15

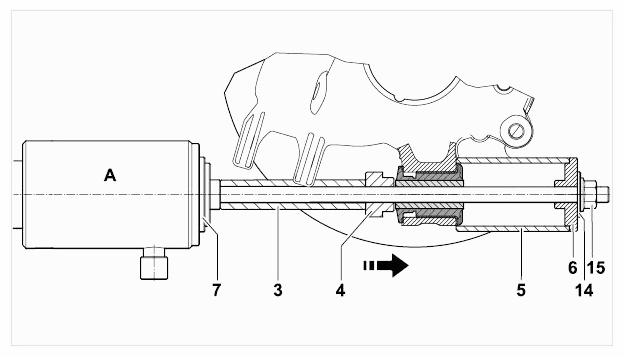

   The pressure pieces are used as follows -siehe illustration-  .

   Get a second worker to help when working on the wheel bearing housing.

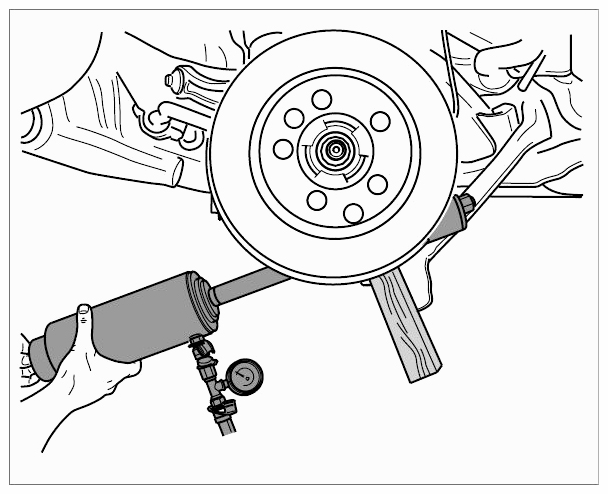

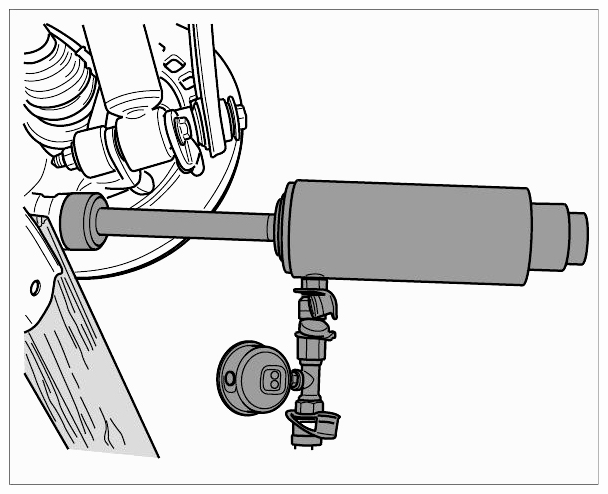

   Fig 6: Positioning Tubular Piston Cylinder

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
6. Position the tubular piston cylinder -siehe illustration-  and pre-tension slightly to prevent the pressure pieces from slipping out of place. Check the position of the pressure pieces again.
   Fig 7: Checking Position Of Pressure Pieces On Contact Surfaces Of Wheel Bearing Housing

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

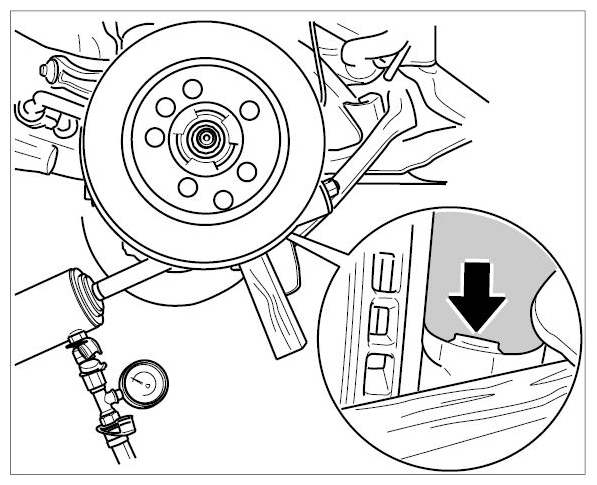

7. The pressure piece must be positioned correctly on the contact surfaces of the wheel bearing housing. The cut-out in the pressure piece -arrow-  should be used as a viewing window. Now press the bearing out carefully. When doing so, stand to the side of the tubular piston cylinder and make sure that the tubular piston cylinder cannot fall down.
   Fig 8: Locating Cut-Out In Pressure Piece

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Read specific safety information for the press.

→ Check that the press is working perfectly before use, particularly the safety components.

→ Read specific safety information for the press.

→ Check that the press is working perfectly before use, particularly the safety components.

Information

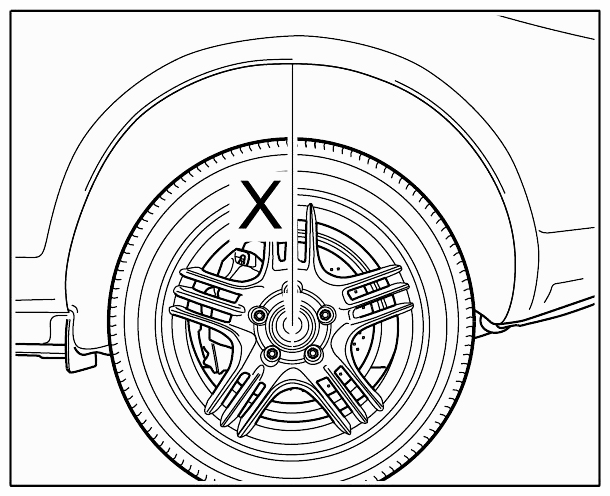

• The entire threaded parts of the axle must be tightened in vehicle position. Vehicle position means: vehicle standing on the wheels, or the wheel suspension is raised using a universal vehicle lift. Dimension -X- from lower edge of wing to middle of axle 506 mm ±10 mm corresponds to vehicle position.

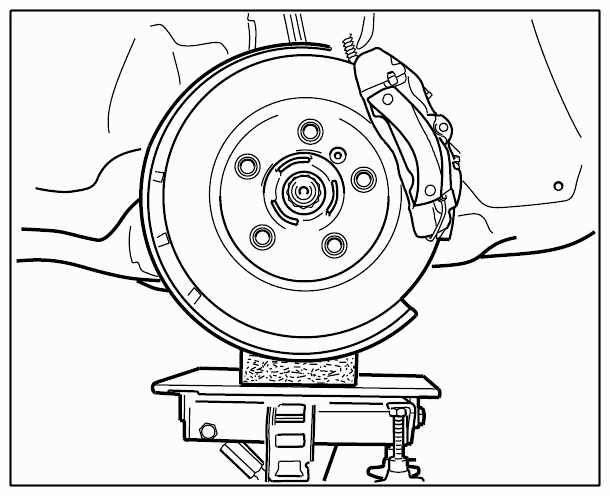

  Fig 1: Identifying Vehicle Position Mark

  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
• Use an intermediate layer (hard rubber). Do not damage the brake cover plate.
  Fig 2: Identifying Brake Cover Plate

  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
• Screws and nuts are Dacromet-coated and must not be greased.
• Use new screws and lock nuts.
• Observe tightening torques →  WM 4200TW TIGHTENING TORQUES FOR REAR AXLE   .

1. To fit the new bearing use the -Druckstucke-  and tubular cylinder VAS 6178. No. 13 is screwed into the tubular piston cylinder. No. 2 is screwed on to the threaded rod and positioned in No. 13 for pressing in the bearing.
   Fig 3: Identifying Bearing And Tubular Cylinder

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   • T10230/2
   • T10230/3
   • T10230/6
   • T10230/7
   • T10230/8
   • T10230/13
   • T10230/14
   • T10230/15

   The -pressure pieces-  are used as follows:

   Get a second worker to help when working on the wheel bearing housing.

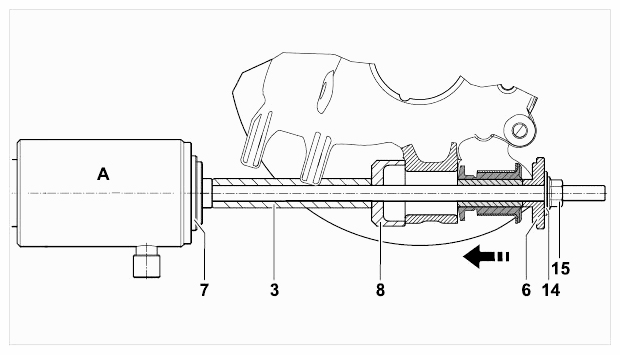

   Fig 4: Positioning Tubular Piston Cylinder

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Position the -tubular piston cylinder-  and pre-tension slightly to prevent the pressure pieces from slipping out of place. Check the position of the pressure pieces again.
   Fig 5: Checking Position Of Pressure Pieces

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. The pressure piece must be positioned correctly on the sealing surfaces of the wheel bearing housing. Now press the bearing in carefully. When doing so, stand to the side of the tubular piston cylinder and make sure that the tubular piston cylinder cannot fall down. Maximum assembling force must not exceed 30 KN at the stop.
   Fig 6: Positioning Pressure Piece On Sealing Surfaces Of Wheel Bearing Housing

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Press the bearing in until it is enclosed evenly by the rubber lip.

4. If the bearing for the axle strut is fitted cleanly, install the wheel bearing housing in the bottom axle strut.
