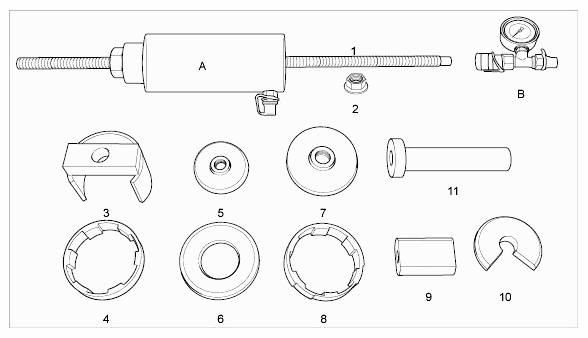

Tool overview for chassis sub-frame bearings assembly fixture T10301

Fig 1: Identifying Tools For Chassis Subframe Bearings
G09419041Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. -A- - Hydraulic cylinder VAS 6178 (The hydraulic cylinder is used together with the foot pump VAS 6179 and the pressure gauge with connecting cable VAS 6179/1 -B-  .)
  2. -1- - Threaded rod (Inserted into the tubular piston cylinder -A-  .)
  3. -2- - Threaded nut (Screwed onto the threaded rod -1-  .)
  4. -3- - Pipe (For pressing out the chassis sub-frame bearings.)
  5. -4- - Ring (For pressing out the chassis sub-frame bearings.)
  6. -5- - Press-out plate (For pressing out the chassis sub-frame bearings.)
  7. -6- - Pressure piece (For pressing in the chassis sub-frame bearings.)
  8. -7- - Press-in plate (For pressing in the chassis sub-frame bearings.)
  9. -8- - Ring (For pressing out the chassis sub-frame bearings.)
  10. -9- - Spacer sleeve (For pressing out the chassis sub-frame bearings together with pipe -3-.)
  11. -10- - Pressure piece (For pressing in the chassis sub-frame bearings.)
  12. -11- - Spacer sleeve (For pressing in the chassis sub-frame bearings.)

    Porsche supplement set T10301/20

  13. -2- - Threaded nut (Screwed onto the threaded rod -1-  .)
  14. -12- - Press-out ring (For pressing out the chassis sub-frame bearings.)
  15. -13- - Pressure piece (For pressing in the chassis sub-frame bearings.)
  16. -14- - Bush (For pressing out the chassis sub-frame bearings.)

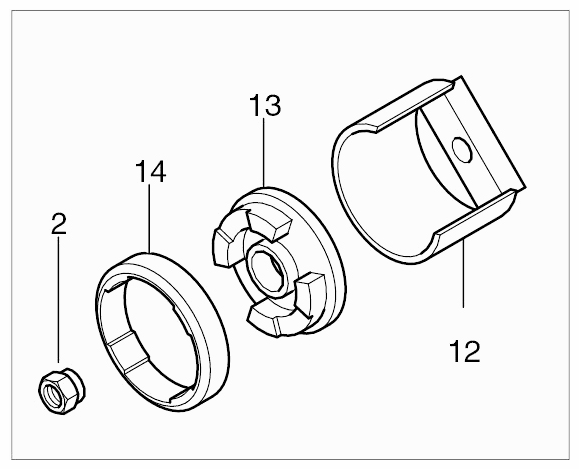

Fig 2: Identifying Assembly Fixture T10301/20
G09419042Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Counter support, 0 - 40 mm Nr.106

Internal puller Nr.108

Separating device, 12 - 115 mm ø Nr.111

Replacing RA bearings as of model year 2008

NOTE: Incorrect line routing
  • Risk of damage to lines and hoses
  • Malfunction and fault memory entry on control unit

→ Avoid small bending radii when routing lines.

→ File down edges and burrs in the routing area or mask them with adhesive tape.

→ Maintain a sufficient distance from components exposed to high temperatures while driving.

For vehicles with PDCC (Porsche Dynamic Chassis Control)

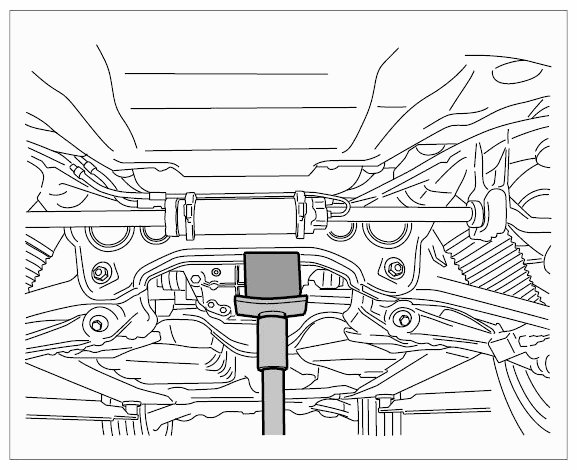

  1. Move the gear support → under the centre of the chassis sub-frame and lift it carefully using a suitable base (e.g. hard rubber support).
    Fig 3: Supporting Chassis Subframe (ORS Anti-Roll Bar)
    G09419043Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. For vehicles with PDCC: Unclip the lines from the holders on the body so that there is sufficient clearance at the lines for lowering the chassis sub-frame.

    Information

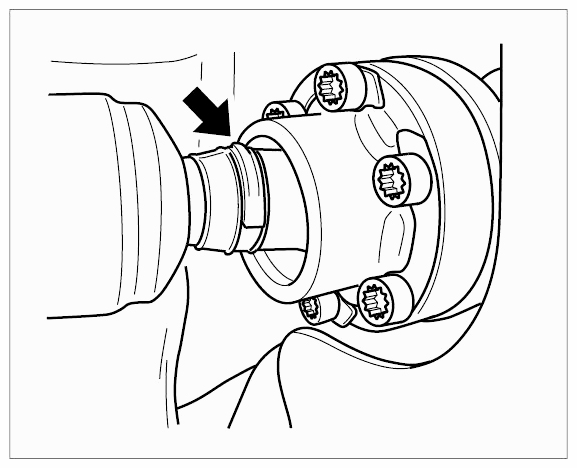

    Front rear-axle bearings: The cardan shaft must not touch the mounting face when lowering the suspension sub-frame! -Arrow-

    Fig 4: Locating Clearance For Cardan Shaft
    G09419044Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Loosen the threaded joint at the bearing and carefully lower the gear support until there is sufficient clearance for using the tool.
  4. Press out chassis sub-frame bearing.

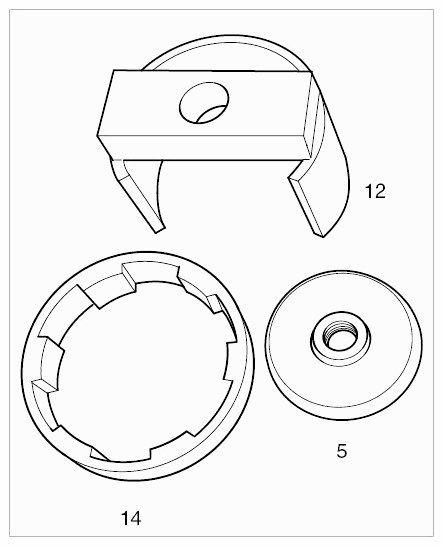

    Fig 5: Identifying Tools For Pressing Out RA Chassis Subframe
    G09419045Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    CAUTION: Heavy components
    • Risk of squashing

    → Wear personal protective gear.

    → Get someone to help if necessary.

    Information

    Hold the hydraulic cylinder VAS 6178 tightly while pressing it out.

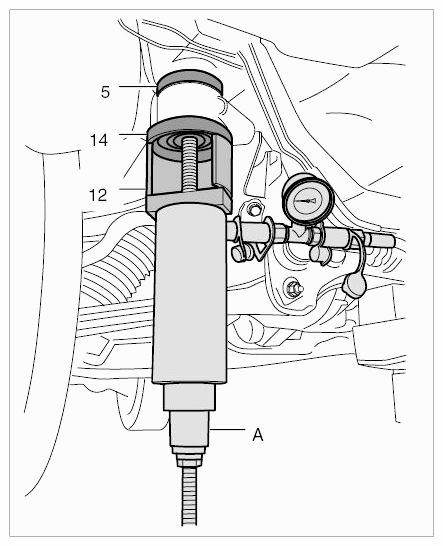

  5. Attach the tools as shown in the picture and press out the bearing.
    Fig 6: Pressing Out RA Bearing, Chassis Subframe
    G09419046Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Information

    When inserting the bearing, make sure that the rubber cushion is pointing in the direction of travel in the transverse direction.

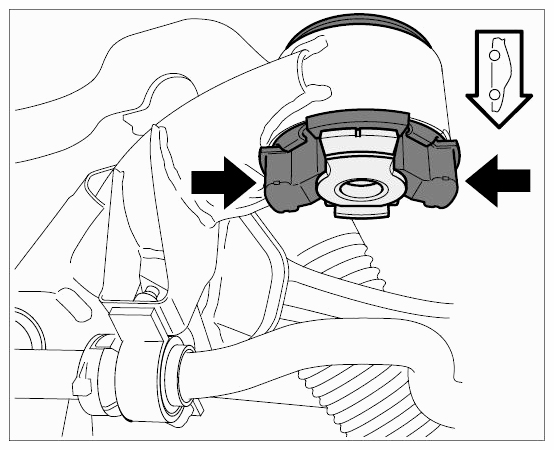

  6. Check the chassis sub-frame installation position (rubber cushion -arrows-  ).
    Fig 7: Checking Chassis Subframe Installation Position
    G09419047Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  7. To avoid damaging the bearing, the maximum → Pressure: 60 kN+/-5 kN  must not be exceeded at the stop (60 KN = 200 bar). This conversion applies only to the hydraulic cylinder VAS 6178. The conversion depends on the diameter of the cylinder in question. Assembly fixture T10301 Porsche supplement set T10301/20

    Information

    The nut -2-  must be locked in the process with the contact surface on the press-in plate -7-  ! The press-in plate -7-  must be positioned perfectly on the bearing sleeve on the chassis sub-frame. (Get another worker to help if necessary!) This prevents the bearing from being drawn in at an incorrect angle.

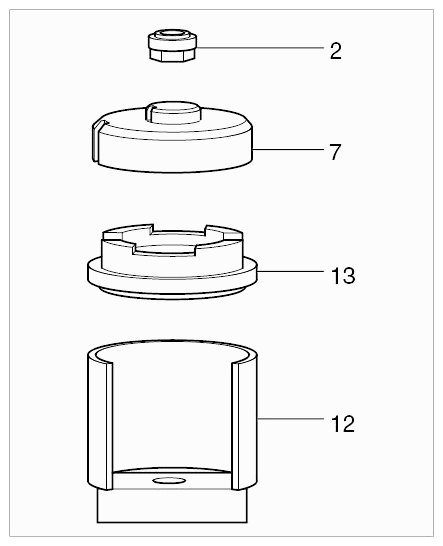

    Fig 8: Identifying RA Bearings
    G09419048Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  8. Connect the tools together as shown in the instructions. Press the bearing in carefully.

    Information

    Observe correct tightening torques.

  9. Carefully lift the chassis sub-frame until the installation position is reached. Fit the threaded joint on the chassis sub-frame bearing.
  10. For vehicles with PDCC: Clip the lines into the holders on the body. → WM 4303AW SAFETY REQUIREMENTS FOR PORSCHE DYNAMIC CHASSIS CONTROL (PDCC)
