Tools And Materials: Tools

  1. -A- - Mounting frame
  2. -11- - Take-up point for rear axle housing
  3. -22- - Take-up point for rear axle housing

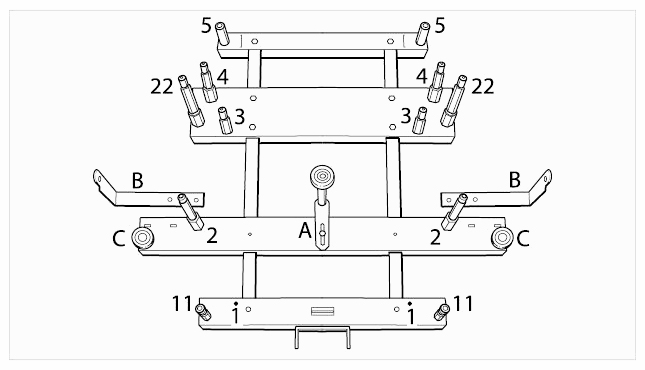

    4. Fig 1: Identifying Mounting Frame
    G09419020Courtesy of PORSCHE CARS NORTH AMERICA, INC.
