Removing Regulator For Rear Seat Heating

Fig 1: Overview Of Regulator For Rear Seat Heating

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

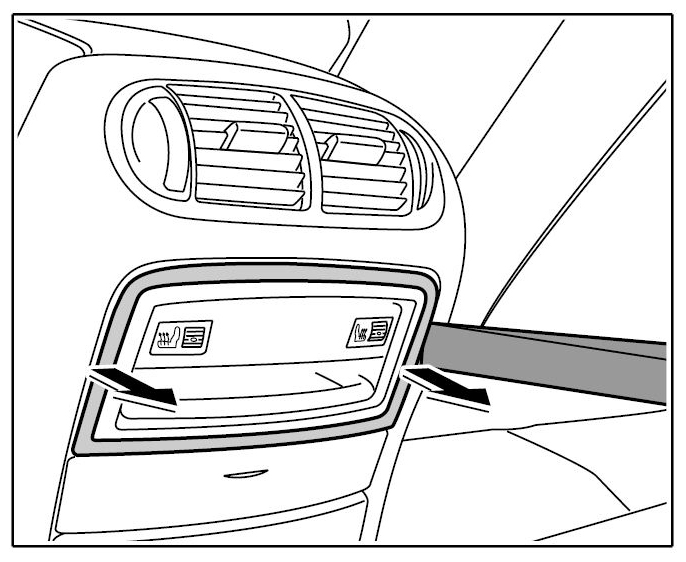

1. Carefully unclip the cover using a plastic wedge -arrows-  .
   Fig 2: Unclipping Cover

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Unscrew fastening screws -Arrows 1-  and remove tray together with retaining bracket -arrow-  .
   Fig 3: Removing Compartment Retaining Bracket

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Release both connectors -Arrow A-  and pull them off -Arrow B-  .
   Fig 4: Pulling Off Rear Seat Heating Connector

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Release regulator -Arrow A-  and remove it on the inside by pulling upwards -Arrow B-  .
   Fig 5: Removing Regulator

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
