Installing Regulator For Rear Seat Heating

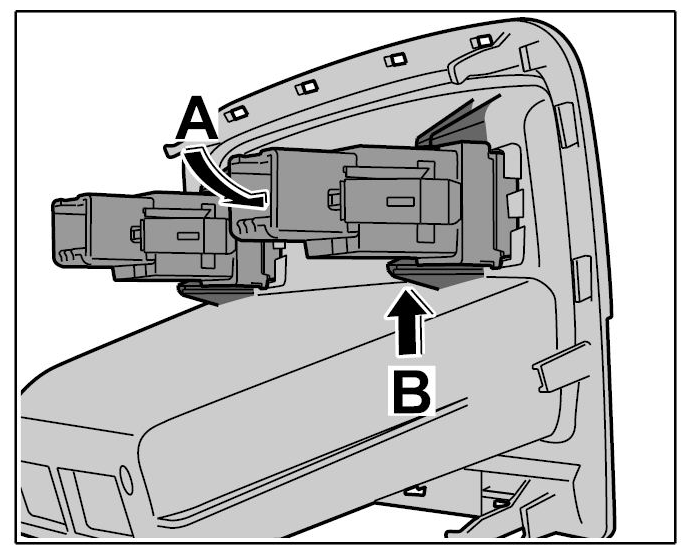

- Insert regulator from the inside -Arrow A-
until locking tabs are felt to engage -Arrow B-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

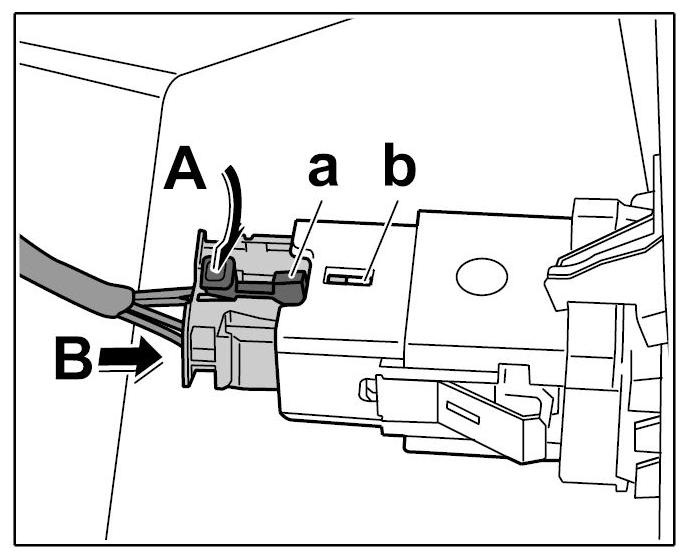

- Push in the lock -Arrow A-
, then insert the connector -Arrow B-
until the locking tab -a-
is felt to engage in the opening -b-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

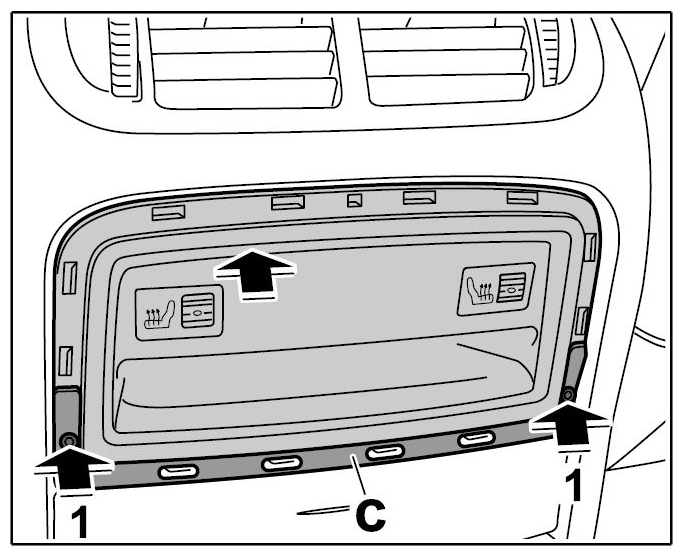

- Fit tray into the console -arrow-
and secure tray and retaining bracket -C-
with fastening screws -Arrows 1-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

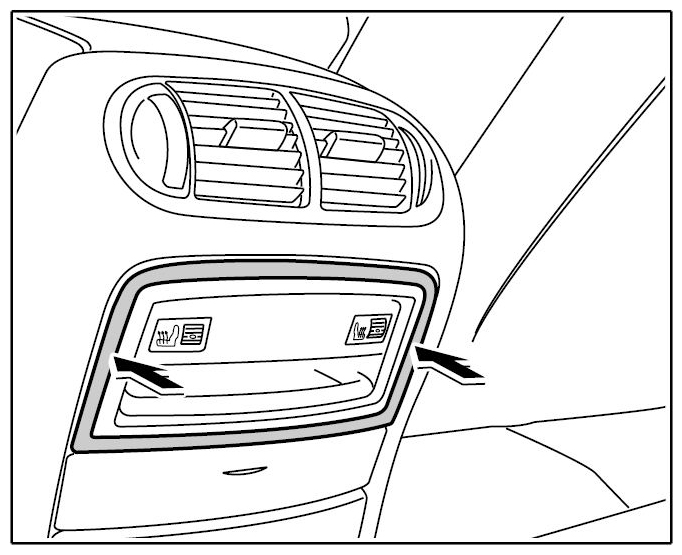

- Clip in the cover -arrows-
until the locking tabs are felt to engage.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
