Installing Rear Cigar Lighter

  1. Press the plug into the cigar lighter until it is felt to engage.

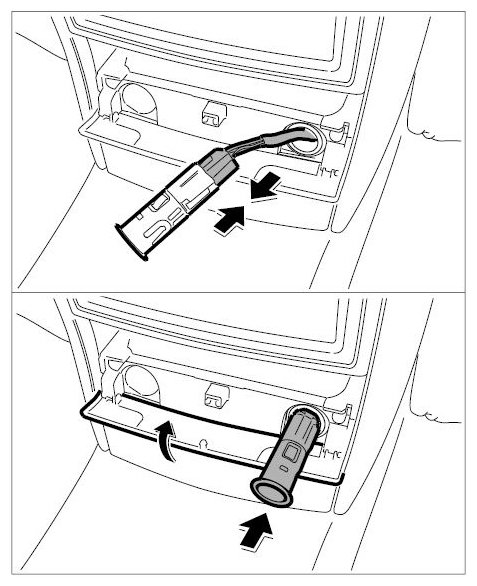

    Fig 1: Installing Cigar Lighter
    G09414888Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Insert cigar lighter as far as it will go and close the cover.
  3. Slide cupholder back into console as far as it will go.

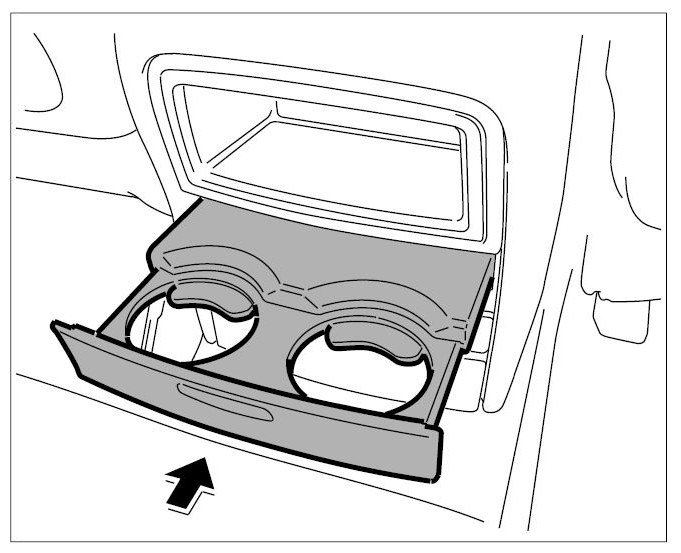

    Fig 2: Installing Cupholder
    G09414889Courtesy of PORSCHE CARS NORTH AMERICA, INC.
