Installing Front Cigar Lighter

Push the plug connection together until the plug is felt to engage.

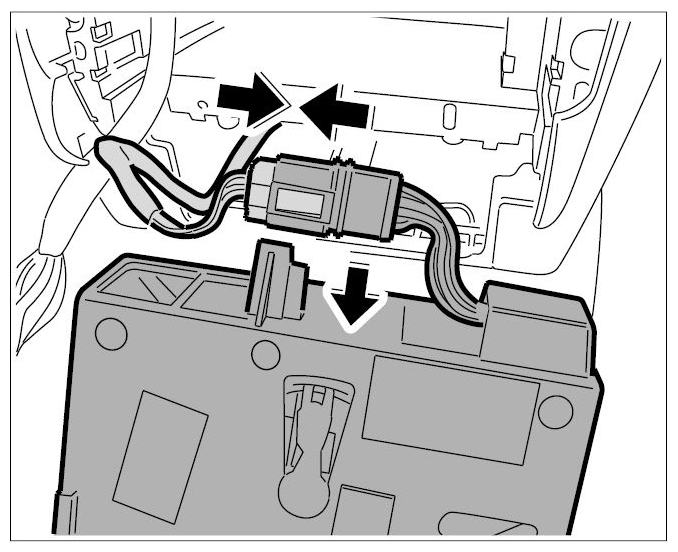

Fig 1: Connecting Cigar Lighter Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Snap plug connection for ashtray into place.
Insert ashtray into center console and secure with fastening screws. → Tightening torque: 1.0 ftlb.

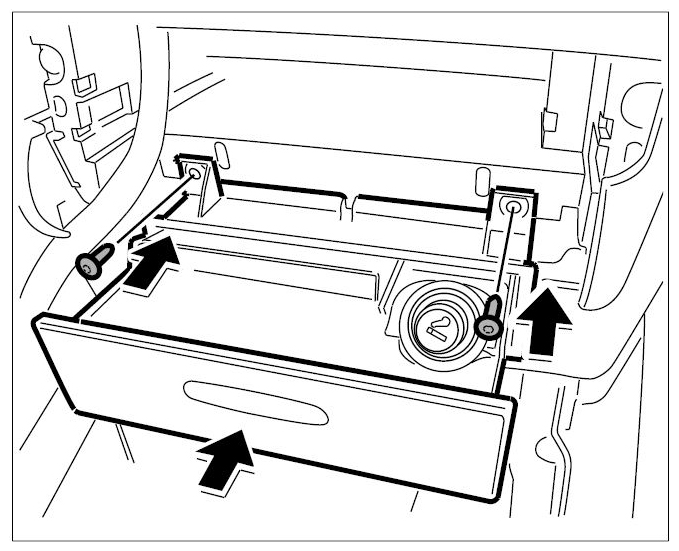

Fig 2: Installing Ashtray Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
