Installing Dashboard Insert

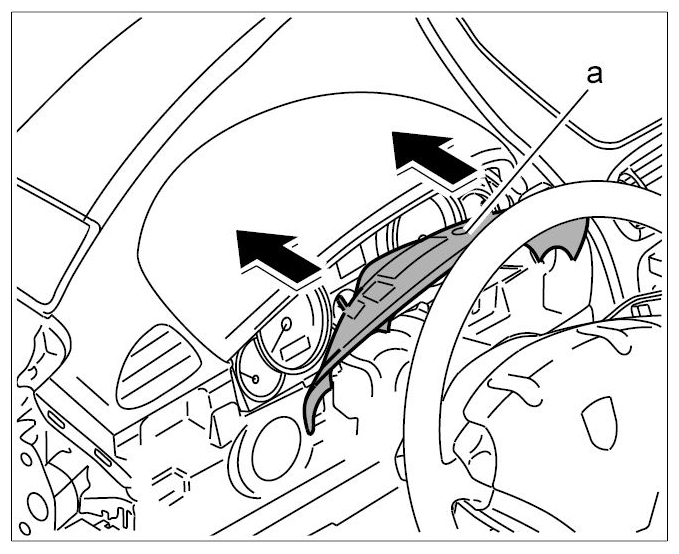

- Position dashboard inset (cover for instrument cluster) -b-
into the installation position.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Lift dashboard inset (cover for instrument cluster) slightly at the front and -arrow A-
position the fastening screw -3-
, but do not screw down.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Push the dashboard inset (cover for instrument cluster) completely to the front -arrows B-
and tighten the fastening screw -3-
.
- Press the dashboard inset (cover for instrument cluster) downward and screw down the fastening screws -1 and 2-
. → Tightening torque: 1 ftlb.
→ Tightening torque: 1 ftlb.
- Insert trim -a-
and press against top of instrument panel insert (cover for instrument cluster) until the clips can be felt to engage.
