Adjusting Front Axle Caster

Specified tightening torque for lock nut at the caster eccentric adjuster -B-  = 170 Nm (126 ft lbs.)!

Caster is adjusted at the caster eccentric adjuster -B-  .

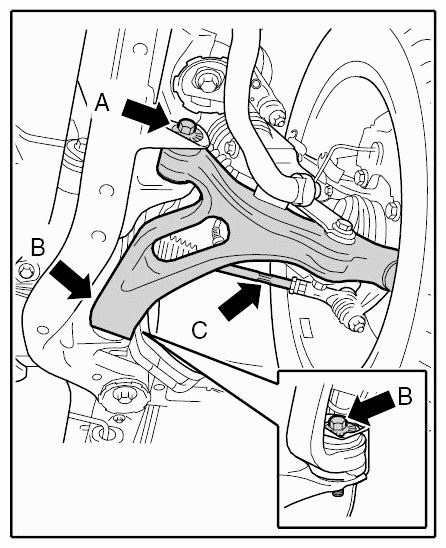

Fig 1: Locating Caster Eccentric Adjuster
G09419449Courtesy of PORSCHE CARS NORTH AMERICA, INC.
