Distinguishing Feature And Allocation Of Coil Springs And Shock Absorbers

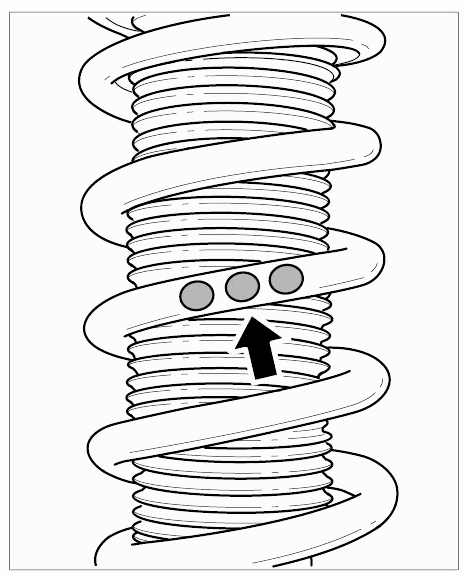

The coil springs are allocated using coloured dots -arrow- . Yellow is used for the Cayenne and gold for the Cayenne S → ALLOCATION OF COIL SPRING AND BOTTOM SUPPORT .
| Model | Coil spring colour coding |
|---|---|
| Cayenne | Yellow (1 or 2 dots) |
| Cayenne S | Gold (1 or 2 dots) |
The shock absorbers are allocated using the spare part numbers and the model specification. At present, two different shock absorbers, right and left, are used on the front axle of the Cayenne and Cayenne S.
