Installing Front Spring Strut

Information

• The steel springs do not apply for the Cayenne Turbo.
• Standard Cayenne Turbo equipment: Air springs with levelling system and vertical adjustment.

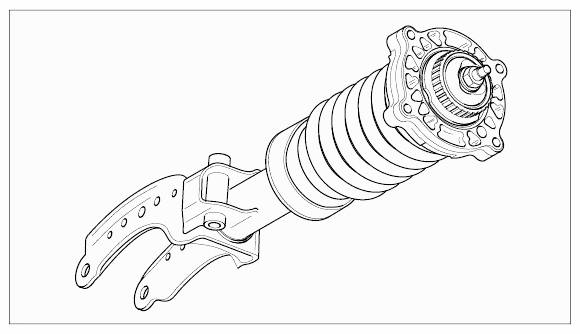

  Fig 1: Identifying Front Spring Strut

  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Wear personal protective gear.

→ Do not raise the wheel suspension higher than the normal vehicle position (vehicle resting on wheels).

→ Wear personal protective gear.

→ Do not raise the wheel suspension higher than the normal vehicle position (vehicle resting on wheels).

Information

• All screws and bolts on the axle must be tightened in vehicle position. Vehicle position means: vehicle resting on its wheels, or the wheel suspension is raised with a universal vehicle lift. Dimension -X- , from lower edge of wing to centre of wheel → Control value: 502 mm+/-10 mm corresponds to vehicle position.

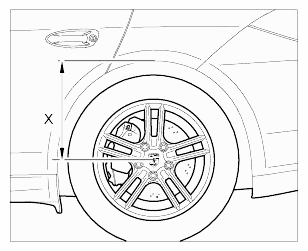

  Fig 2: Identifying Universal Vehicle Lift Dimension

  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
• Carry out a visual inspection of all parts.
• Replace self-locking nuts.
• Replace all expansion screws (screws fitted using torque angle tightening procedure).
• Observe correct tightening torques and torque angle → Tightening torques for front axle.
• Make sure the bevel pinions from the ball joints are clean. Clean with a lint-free cloth if necessary. Do not use cleaning agent.

1. Carefully insert the spring strut and tighten to mounting saddle (four M8 fastening nuts) with the prescribed tightening torque.
2. Fix upper axle strut with spring compressor VW 552.  This involves tensioning the axle strut slightly because otherwise the top ball joint can be damaged. When doing this, the spring compressor VW 552  → see Fig 3 is engaged in the upper opening of the wheel housing (double panel) and in the axle strut and pre-tensioned with the nut.

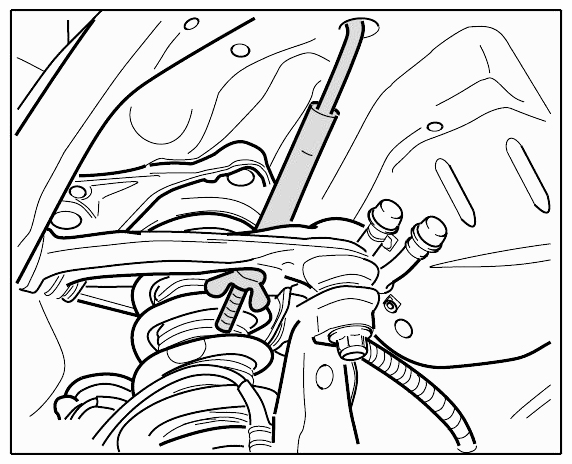

   Fig 3: Fixing Upper Axle Strut Using Spring Compressor VW 552

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. For easy fitting, slightly raise the wheel carrier using a suitable lift so that the upper ball pin can be inserted. Use a suitable lift with rubber base → see Fig 4 in order to prevent slipping.

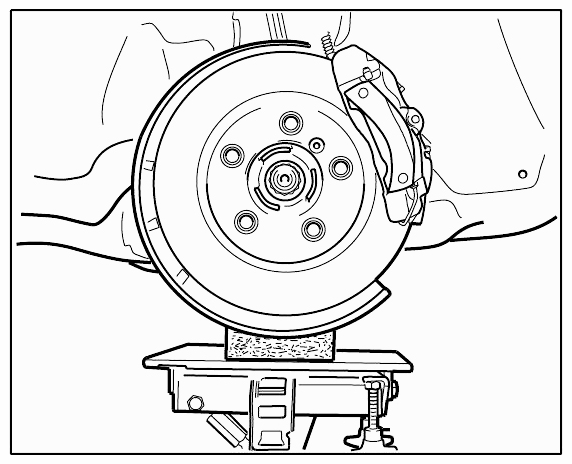

   Fig 4: Lifting Wheel Carrier Using Lift

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Fit securing pin for lower spring strut.
5. Fit connecting link on the anti-roll bar.
6. Fit the holder for the brake line/combination wire at the top on the wheel carrier.
7. Fit the drive shaft at the transmission flange. Remove spring compressor, protective tube and base.
8. Fit the ball joint of the tie rod on the wheel carrier.
9. Tighten plastic nuts on front wheel housing liner.
