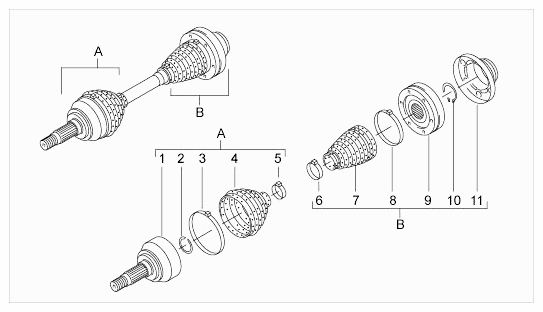

| -A- |
Outer joint |
|
|
|
| -1- |
Joint pin |
1 |
Tap joint pin out of drive shaft using a hammer and mandrel. |
Use a hammer to fit the joint pin as far as it will go on to the drive shaft. |
| -2- |
Circlip 27.5 x 2 |
1 |
Remove circlip. |
Do not confuse circlip no. 2 with circlip no. 10 on inner joint. The two parts are not identical. Ensure that the circlip is seated correctly. |
| -3- |
Hose clamp 105 x 10 |
1 |
Remove hose clamp using a hammer and chisel, for example. Do not damage boot. |
Fit hose clamp with boot on the joint pin. |
| -4- |
Boot |
1 |
Remove boot from the shaft. |
Do not confuse boot no. 4 with boot no. 7. The two parts are not identical. Position boot correctly. |
| -5- |
Hose clamp 35 x 10 |
1 |
Remove hose clamp using a hammer and chisel, for example. Do not damage boot. |
For securing the boot. |
| -B- |
Inner joint |
|
|
|
| -6- |
Hose clamp 35 x 10 |
1 |
Remove hose clamp using a hammer and chisel, for example. Do not damage boot. |
For securing the boot. |
| -7- |
Boot |
1 |
Remove boot from the shaft. |
Do not confuse boot no. 7 with boot no. 4. The two parts are not identical. Ensure correct seating. |
| -8- |
Clamp 74.5 x 10 |
1 |
Remove clamp using a hammer and chisel. |
Fit clamp with boot on the joint. The clamp lug must be positioned between two bores on the joint. |
| -9- |
Joint |
1 |
Press joint off the drive shaft. |
Fit the joint as far as it will go on to the drive shaft using a hammer and mandrel. The cap (boot holder) is part of the joint and is not available as a spare part. |
| -10- |
Circlip 28 x 1.5 |
1 |
Remove circlip carefully with a pliers. |
Do not confuse circlip no. 10 with circlip no. 2 on outer joint. The two parts are not identical. Ensure that the circlip is seated correctly. |
| -11- |
Closure cap |
1 |
Remove cap. |
Use two cheese-head bolts to centre the cap. Ensure correct seating. Seal the sealing faces with special sealant. |
